Good points
- Brand: Ruck
- AC motor
- Up to 15845 m3/h
- Frequency controlled

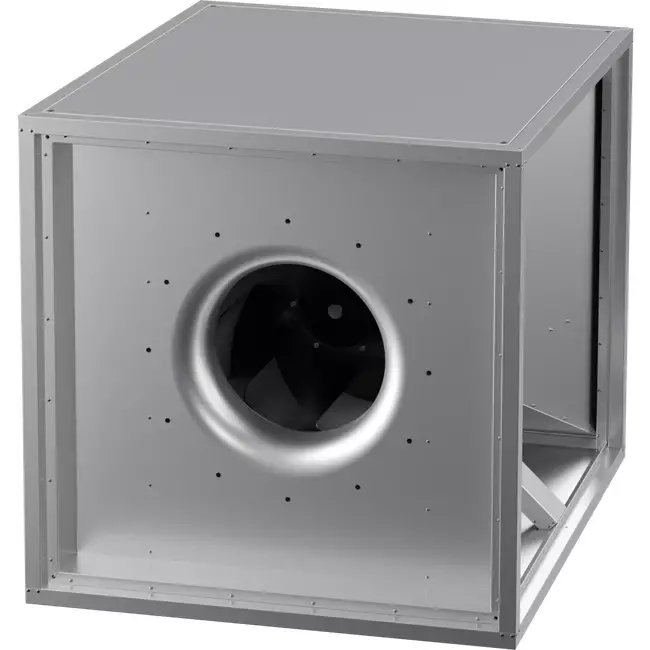

Box Fan Motor Outside Airflow – MPC T 560 D4 K01
The Ruck box fan MPC T 560 D4 K01 is a robust and versatile ventilation solution, designed for demanding applications where flexibility and performance are paramount. The fan features a backward-curved centrifugal impeller and a powerful IE3 motor that is positioned outside the airflow. This protects the motor from contamination and heat, ensuring a longer lifespan and lower maintenance costs. Thanks to the removable side panels and variable discharge direction, this fan can be easily adapted to the desired installation situation. The motor is continuously adjustable, allowing for precise tuning of the airflow.
High Quality
The MPC T 560 D4 K01 has a double-walled and fully insulated housing made of galvanized steel. The underside of the unit is equipped with an integrated drain for condensate and grease, making this fan highly suitable for environments with contaminated or humid air. The fan is designed for continuous operation at medium temperatures up to 120 °C. The smart design with removable side panels allows for easy and quick maintenance, contributing to the reliability of the system in long-term applications.
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in professional ventilation technology. With more than 300 employees, the company develops innovative solutions daily that meet the highest standards in energy efficiency, sustainability, and safety. The MPC T 560 D4 K01 complies with current ERP guidelines.
Features and Specifications
- Centrifugal fan with backward-curved impeller
- Removable side panels and variable discharge direction
- Double-walled, insulated housing made of galvanized steel
- Integrated drain for condensate and grease
- IE3 motor outside the airflow, continuously adjustable
- Suitable for medium temperatures up to 120°C in continuous operation
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Heat-resistant box fans |
| GTIN | 4061199044585 |
| Manufacturer's item number | MPC T 560 D4 I K 01 |
| Article number | 65172733 |
Specifications
| Category code | 35 |

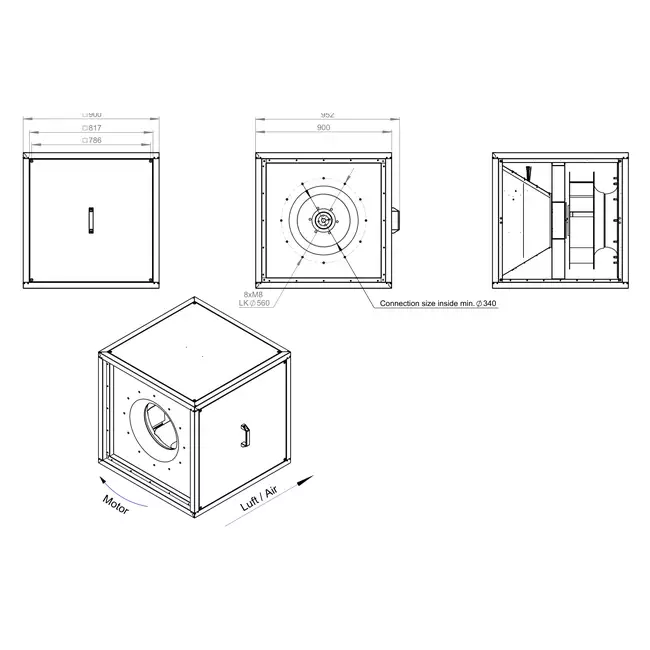

| Length | 900 mm |
| Connection | Insert end |
| Width | 900 mm |
| Height | 900 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 15845 m³/h |
| Power consumption | 4385 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter, suction | 630 mm |
| Duct diameter, exhaust | 630 mm |
