Good points
- Brand: Ruck
- AC motor
- Up to 9780 m3/h
- Frequency controlled

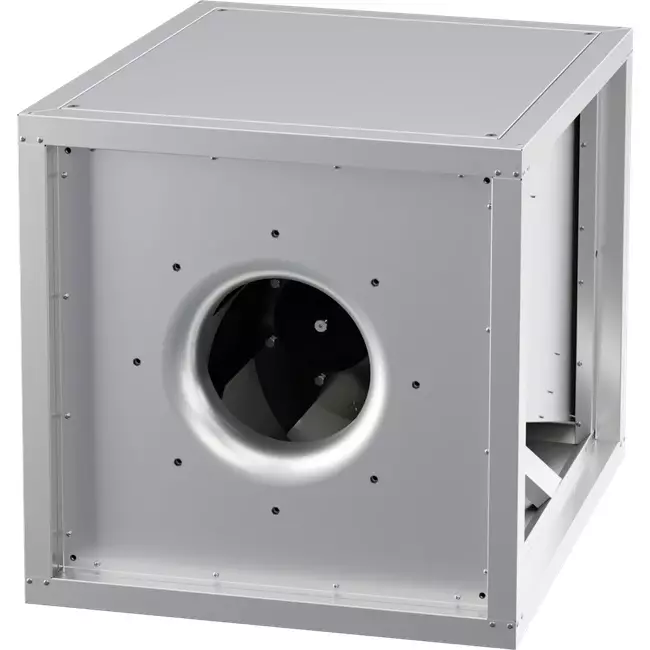

Box Fan Motor Outside Airflow – MPC T 500 D4 K01
The Ruck box fan MPC T 500 D4 K01 is a powerful and flexible ventilation solution for applications where reliability and high performance are required. The fan is equipped with a backward-curved centrifugal impeller and an IE3 motor that is positioned outside the airflow. This prevents contaminated or warm air from reaching the motor, which extends its lifespan and simplifies maintenance. Thanks to the removable side panels and variable discharge direction, this fan is easy to integrate into various air ducts and installations. The motor is infinitely adjustable, providing optimal control over the air volume.
High Quality
The MPC T 500 D4 K01 features a double-walled, insulated housing made of galvanized steel, ensuring sound dampening and thermal insulation. The underside of the housing has an integrated drain for condensate and grease, ideal for environments with high humidity or contaminated air. The fan is suitable for continuous operation at medium temperatures up to 120 °C. Thanks to its smart design, the fan is easy to maintain and can be adapted to various installation requirements.
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in developing energy-efficient ventilation systems. With more than 300 employees, innovative products are developed daily that meet the highest standards for energy consumption, sustainability, and safety. Naturally, the MPC T 500 D4 K01 also complies with current ERP guidelines.
Features and Specifications
- Centrifugal fan with backward-curved impeller
- Removable side panels and variable discharge direction
- Double-walled, insulated housing made of galvanized steel
- Integrated drain for condensate and grease
- IE3 motor outside the airflow, infinitely adjustable
- Suitable for medium temperatures up to 120°C in continuous operation
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Heat-resistant box fans |
| GTIN | 4061199044578 |
| Manufacturer's item number | MPC T 500 D4 I K 01 |
| Article number | 65172730 |
Specifications
| Category code | 35 |
| Length | 700 mm |
| Connection | Insert end |
| Width | 700 mm |
| Height | 700 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 9780 m³/h |
| Power consumption | 2318 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter, suction | 500 mm |
| Duct diameter, exhaust | 500 mm |
