Good points
- Brand: Ruck
- EC motor
- Up to 12565 m3/h
- Speed controllable
Box Fan Motor Outdoor Linear Flow - MPC TI 560 EC K01

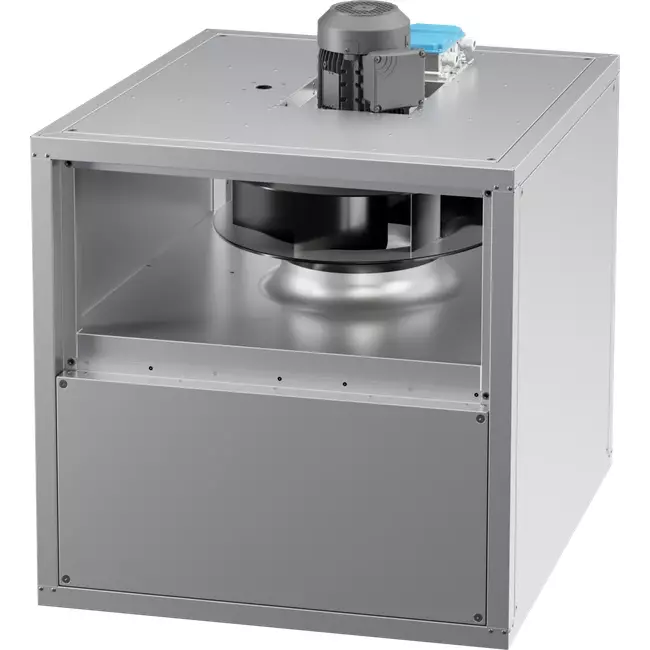

The Ruck box fan MPC TI 560 EC K01 is a powerful and reliable ventilation solution for professional applications. The fan is equipped with a backward-curved centrifugal impeller that ensures stable air displacement with a linear airflow through the housing. The energy-efficient EC motor is positioned outside the airflow, providing optimal protection against contamination and heat. This extends the motor's lifespan and minimizes maintenance needs. The motor is infinitely adjustable via a 0-10V signal, allowing for precise control of the air volume.
High Quality
The MPC TI 560 EC K01 features a double-walled, insulated housing made of galvanized steel that effectively dampens sound and heat. An integrated drain for condensate and grease is located at the bottom, making the fan particularly suitable for demanding applications in environments with humid or polluted air. The fan is designed for continuous operation at medium temperatures up to 120 °C. Thanks to the thoughtful design with a removable fan unit and straight air guidance, maintenance can be performed quickly and easily.
Ruck Ventilatoren GmbH is a renowned German manufacturer with over 25 years of experience in ventilation technology. With a team of more than 300 employees, Ruck develops innovative and energy-efficient solutions for various ventilation challenges. All products comply with current ERP guidelines and are built for sustainable performance.
Features and Specifications
- Centrifugal fan with backward-curved impeller
- Linear airflow through the housing
- Double-walled, insulated housing made of galvanized steel
- Integrated drain for condensate and grease
- EC motor outside the airflow, infinitely adjustable
- Suitable for medium temperatures up to 120°C in continuous operation
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Heat-resistant box fans |
| GTIN | 4061199044288 |
| Manufacturer's item number | MPC TI 560 EC I K 01 |
| Article number | 65172142 |
Specifications
| Category code | 35 |

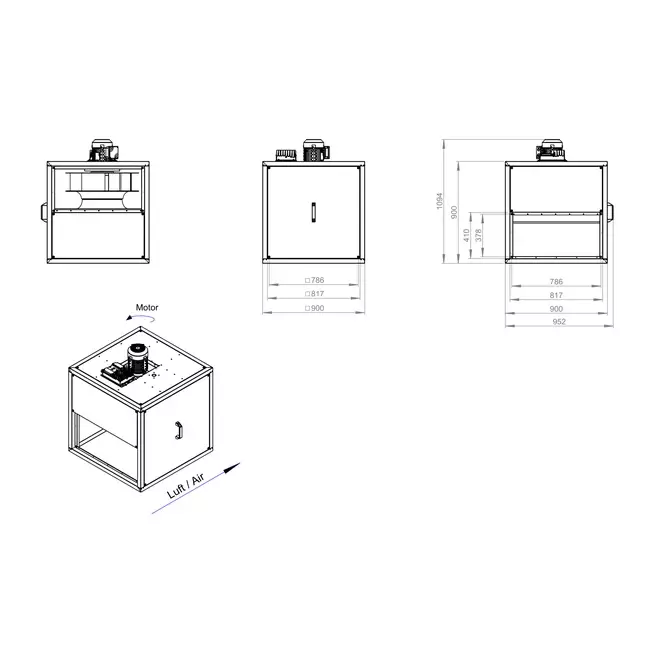

| Length | 900 mm |
| Connection | Insert end |
| Width | 900 mm |
| Height | 900 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 12565 m³/h |
| Power consumption | 2465 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 50 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
