Good points
- Brand: Ruck
- EC motor
- Up to 12595 m3/h
- 120° C continious

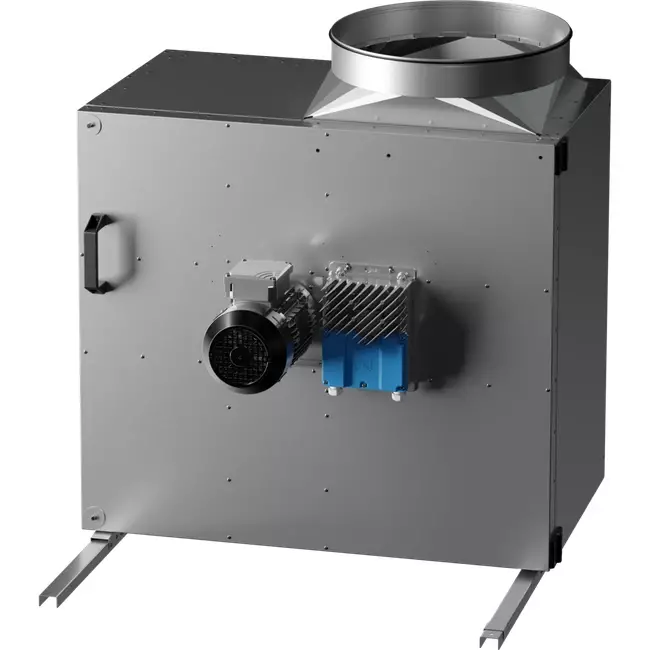

Box Fan Motor Outside Airflow – MPS 560 EC I K 01
The Ruck box fan MPS 560 EC I K 01 is a powerful and durable fan equipped with an energy-efficient EC motor located outside the airflow. This configuration protects the motor from contamination and heat, resulting in less maintenance and a longer lifespan. The fan features a backward-curved centrifugal impeller and is designed for applications where contaminated or warm air needs to be reliably exhausted. With the swing-out fan unit, maintenance is quick and easy to perform. The motor is infinitely adjustable via a 0-10V signal for optimal tuning to the desired air volume.
High Quality
The MPS 560 EC I K 01 has a double-walled and fully insulated housing made of galvanized steel, providing excellent sound insulation and thermal protection. The underside of the fan is equipped with an integrated drain for condensate and grease, making it suitable for use in environments with contaminated or humid air, such as kitchens or industrial installations. The fan is designed for continuous operation at medium temperatures up to 120 °C, making it widely applicable in professional air handling systems.
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in developing advanced and energy-efficient ventilation technology. With more than 300 employees, the company develops solutions daily that meet the highest standards of safety, performance, and sustainability. The MPS 560 EC I K 01 complies with all current ERP directives.
Features and Specifications
- Centrifugal fan with backward-curved impeller
- Double-walled, insulated housing made of galvanized steel
- Swing-out fan unit for easy maintenance
- With integrated drain for condensate and grease
- EC motor outside the airflow, infinitely adjustable
- Suitable for medium temperatures up to 120°C in continuous operation
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Heat-resistant box fans |
| GTIN | 4061199044356 |
| Manufacturer's item number | MPS 560 EC I K 01 |
| Article number | 65172256 |

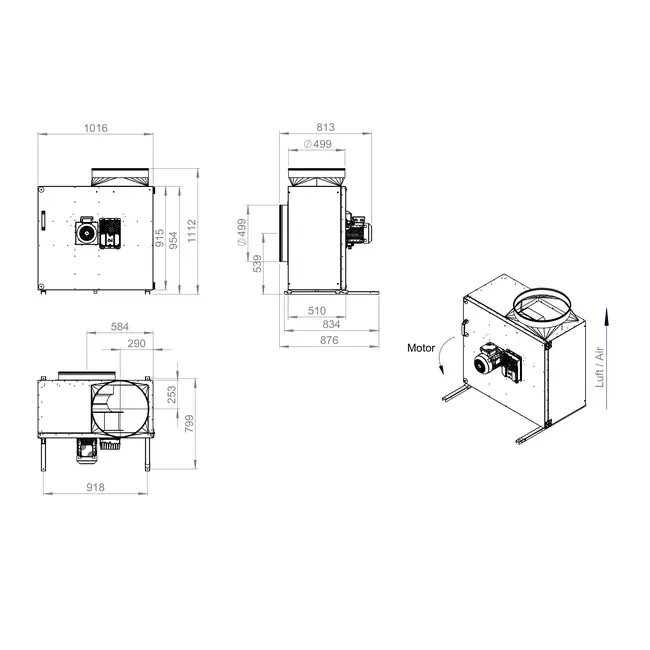

Specifications
| Category code | 35 |
| Length | 510 mm |
| Connection | Insert end |
| Width | 1016 mm |
| Height | 1111 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 12595 m³/h |
| Power consumption | 2479 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 50 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter, suction | 500 mm |
| Duct diameter, exhaust | 500 mm |
