Good points
- Brand: Ruck
- EC motor
- Up to 8120 m3/h
- 120° C continious

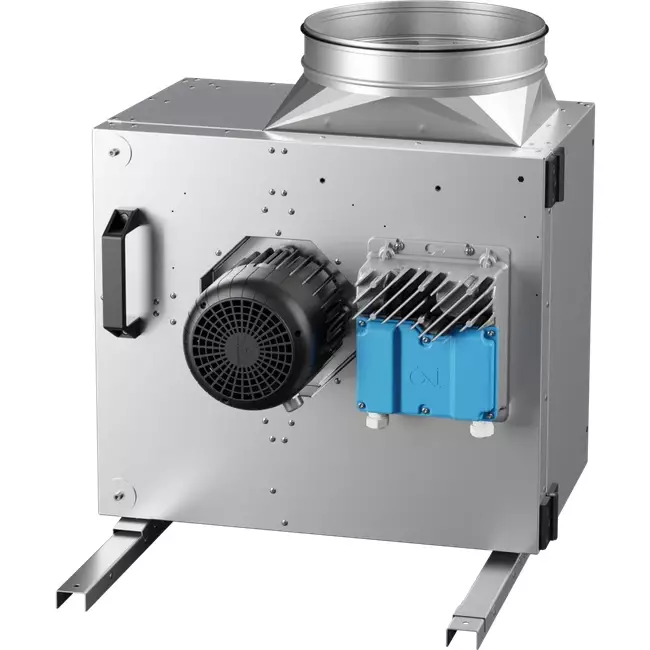

Box Fan Motor Outside Airflow – MPS 500 EC I K 01
The Ruck box fan MPS 500 EC I K 01 is a powerful ventilation solution featuring an energy-efficient EC motor that is positioned outside the airflow. This placement optimally protects the motor from contamination and heat, resulting in a longer lifespan and reduced maintenance. The fan is equipped with a backward-curved centrifugal impeller and is specifically designed for applications where contaminated or warm air needs to be efficiently expelled. Thanks to the swing-out fan unit, maintenance is simple and quick to perform. The motor is infinitely adjustable via a 0-10V signal, providing optimal control over the airflow.
High Quality
The MPS 500 EC I K 01 features a double-walled housing made of galvanized steel, fully insulated for thermal and acoustic damping. At the bottom of the unit, there is an integrated drain for condensate and grease, making this fan suitable for use in environments such as commercial kitchens, industrial installations, or other applications with contaminated air. The fan is designed for continuous operation at medium temperatures up to 120 °C. The robust build quality combined with the smart maintenance concept makes this fan a reliable choice for professional ventilation systems.
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in developing energy-efficient ventilation technology. With more than 300 employees, the company works daily on innovative solutions that meet the highest standards for performance, safety, and sustainability. The MPS 500 EC I K 01 complies with current ERP guidelines.
Features and Specifications
- Centrifugal fan with backward-curved impeller
- Double-walled, insulated housing made of galvanized steel
- Swing-out fan unit for easy maintenance
- With integrated drain for condensate and grease
- EC motor outside the airflow, infinitely adjustable
- Suitable for medium temperatures up to 120°C in continuous operation
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Heat-resistant box fans |
| GTIN | 4061199044318 |
| Manufacturer's item number | MPS 500 EC I K 01 |
| Article number | 65172168 |
Specifications
| Category code | 35 |

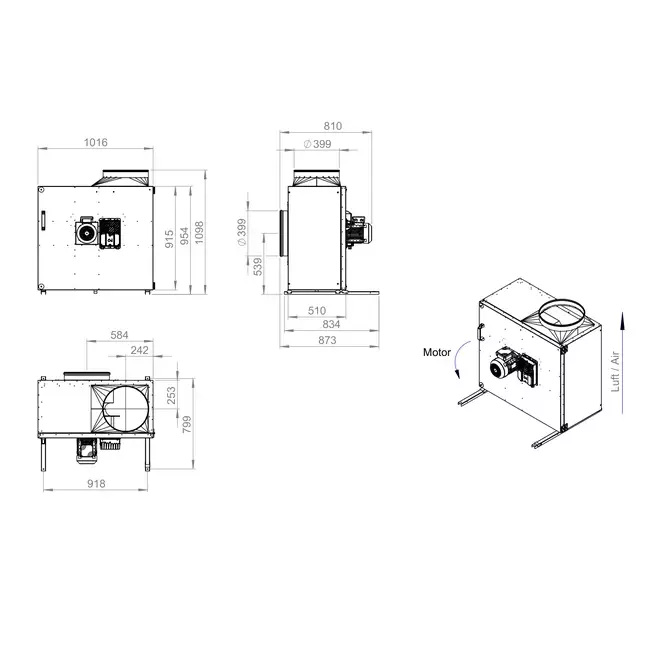

| Length | 1098 mm |
| Connection | Insert end |
| Width | 1016 mm |
| Height | 510 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 8120 m³/h |
| Power consumption | 1555 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 50 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter, suction | 400 mm |
| Duct diameter, exhaust | 400 mm |
