Good points
- Brand: Ruck
- AC motor
- Up to 5130 m3/h
- Frequency controlled

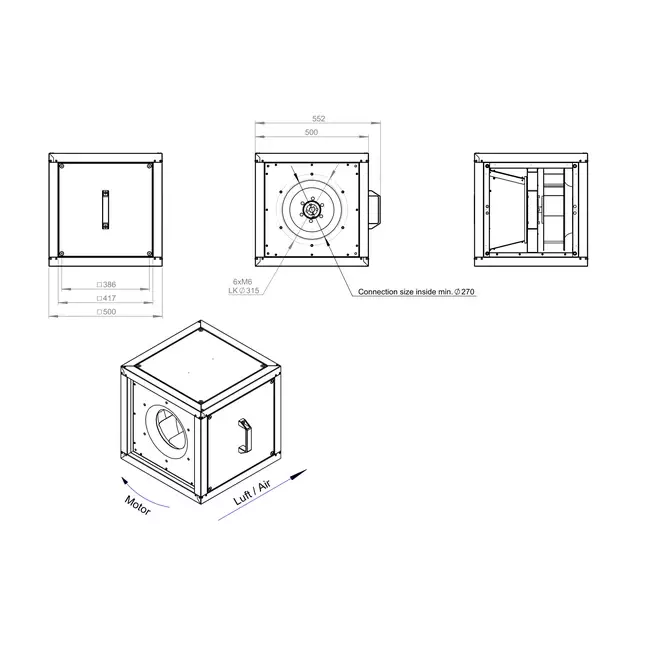

Box Fan Motor Outside Airflow - MPC T 315 D2 I K 01
The Ruck box fan MPC T 315 D2 I K 01 is designed for applications where reliability, efficiency, and temperature resistance are paramount. The fan is equipped with a centrifugal impeller with backward-curved blades, ensuring powerful air displacement with high efficiency. Thanks to the IE3 motor placed outside the airflow, the motor is protected from exposure to hot or contaminated air, significantly increasing its lifespan and operational reliability. The motor is infinitely adjustable via a 0-10V signal and is suitable for continuous operation at medium temperatures up to 120°C.
Practical and Flexible in Use
The MPC T 315 D2 I K 01 features a double-walled, insulated housing made of galvanized sheet steel, which ensures quiet operation and protection against heat loss. The side panels of the housing are removable, and the discharge direction can be adjusted variably, providing maximum flexibility during installation and maintenance. The bottom of the housing is equipped with an integrated drain, ideal for discharging condensate or other liquids during intensive use. These features make the fan suitable for a wide range of industrial and commercial applications.
Ruck Ventilatoren GmbH is a German manufacturer with over 25 years of experience in high-quality ventilation technology. As a specialist in fans with motors outside the airflow, Ruck develops innovative, sustainable solutions that meet the strictest requirements for energy efficiency and reliability. With more than 300 employees, the company works daily on the future of professional ventilation.
Features and Specifications
- Centrifugal fan with backward-curved impeller
- Removable side panels and variable discharge direction
- Double-walled, insulated housing made of galvanized steel
- Integrated drain in the base plate
- IE3 motor outside the airflow, infinitely adjustable
- Suitable for medium temperatures up to 120°C in continuous operation
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Heat-resistant box fans |
| GTIN | 4061199045063 |
| Manufacturer's item number | MPC T 315 D2 I K 01 |
| Article number | 65173410 |
Specifications
| Category code | 35 |
| Length | 500 mm |
| Connection | Insert end |
| Width | 500 mm |
| Height | 500 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 5130 m³/h |
| Power consumption | 1990 kW |
| Suitable for frequency control | Yes |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter, suction | 355 mm |
| Duct diameter, exhaust | 355 mm |
