Box fan flue gas F400 - MPS 225 D2 F4 30

Brand: Ruck ventilatoren GmbH

-35%

RRP 1,412.02

917.81 -35%

You'll save 494.21

Delivery time: 5 weeks

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

Brand: Ruck fans
AC motor
Up to 1960 m3/h
F400 smoke fan

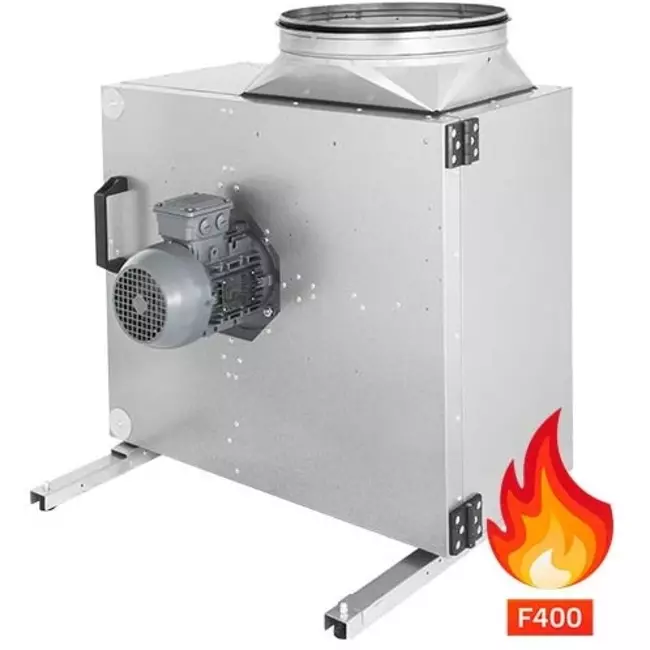

Ruck smoke extractor box fan swing-out and frequency-controlled

The Ruck smoke box fan (MPS DF series) has a frequency-driven motor, this motor is mounted outside the air stream. The advantage of this is that any dirty and contaminated air or gas of up to 200 degrees Celsius is not discharged via the motor. The fan can even handle a temperature of 400 degrees Celsius temporarily! The smoke box fan with motor outside the air stream is therefore often used in the catering industry or in connection with grease. Attention: the fan must be controlled with a frequency converter. If desired, the frequency converter can be controlled with a variable potentiometer.

For maintenance, the energy-efficient box fan is easy to open, and there is also condensation and grease extraction. The MPS DF series is available with capacities ranging from 1960 m3/h up to a maximum of 11840 m3/h.

Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient box fans with voltage control and EC motor. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.

Frequency-controlled motor outside the air stream
Up to 200°C medium temperature
With condensation and grease extraction
Ventilation unit swivels outwards
With adjustable speed

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Box Fan
GTIN	4061199029773
Manufacturer's item number	145815
Article number	65145815

Specifications

Number of phases	3~
Number of poles	2
Category code	35
Weight	29.3 kg
IP Motor	IP55
Insulation Class Motor	F
Max. Operating Current	0.9 A
Max. pressure	980 Pa
Max. Air Volume	1960 m³/h
Max. Current Consumption	0.9 A
Max. Static Efficiency	46.3 %
Max. allowed Frequency (3˜ motors)	60 Hz
Max. allowed Medium Temperature	200 °C
Max. allowed Medium Temperature at Rated Current	200 °C
Max. allowed Ambient Temperature	50 °C
Max. allowed Ambient Temperature at Rated Current	50 °C
Max. number of revolutions	3530 1/min
Max. Total Efficiency	50.6 %
Min. Operating Temperature	-20 °C
Motor type	3~
Nominal frequency	50 Hz
Rated Speed	3440 1/min
Nominal power consumption	486 W
Nominal voltage	400 V
Nominal current	0.9 A
Direction of blow out	Shifted by 90° compared to suction

Documents

Informatieblad

Commissioning report EM EC

Programmacode frequentieomvormer

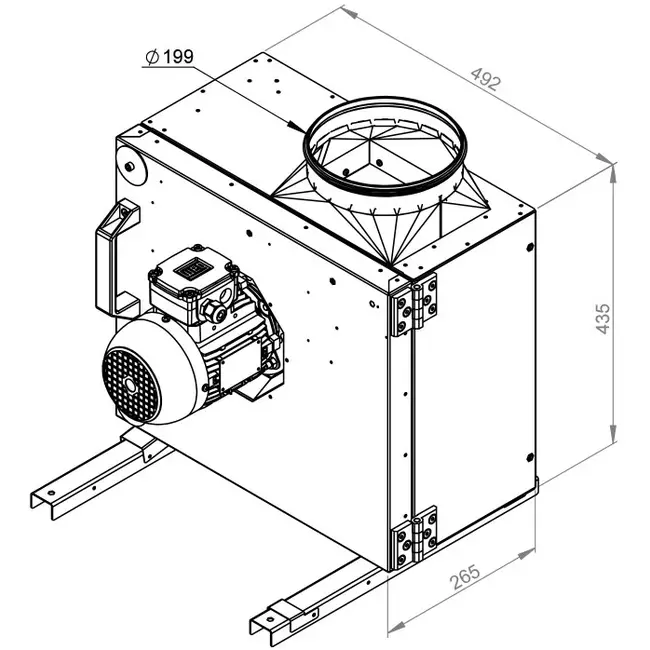

Technische tekening (.dxf file)

Technische tekening (.dwg file)

Aanbesteding

3D model (.step file)

Bedieningshandleiding

Tekeningen op schaal

Ruck ® 145815 - Certifications

Ruck ® 145815 - Declaration of performance

Ruck ® 145815 - Declaration of Incorporation

Ruck ® 145815 - EC Declaration of Conformity

Ruck ® 146696 - Programming instructions frequency converter
