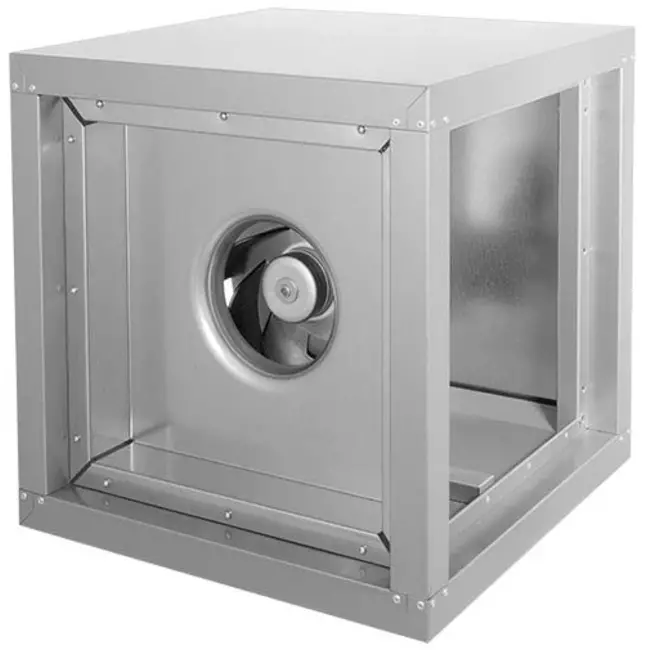

The Ruck box fan (MPC EC series) has an energy-efficient EC motor, this EC motor can be operated with variable speed control (MTP 40). The EC box fan can also be operated with constant pressure control by means of a 0-10V connection. If you use the reducer, we also recommend the Ruck fast clamp to reduce vibrations and noise through the duct.
The box fan is equipped with 30 mm insulation and has internal electronic temperature control to prevent burn out. The energy-efficient box fan can be mounted via Ruck's base frame and has a variable discharge direction. The MPC EC series is available with capacities ranging from 1030 m3/h to a maximum of 17720 m3/h and with diameters ranging from 225 mm to a maximum of 630 mm respectively.
Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient box fans with EC motor. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.
| Brand | Ruck ventilatoren GmbH |
| Category | Energy-efficient box fans |
| GTIN | 4061199034845 |
| Manufacturer's item number | 159802 |
| Article number | 65159802 |
| Number of phases | 1~ |
| Type of motor control | 0-10V |
| Category code | 35 |
| Weight | 49.4 kg |
| IP Complete Unit | IPX4 |
| IP Motor | IP54 |
| Insulation Class Motor | B |
| Max. Operating Current | 1.4 A |
| Max. pressure | 390 Pa |
| Max. Air Volume | 3080 m³/h |
| Max. Current Consumption | 1.4 A |
| Max. power consumption | 164 W |
| Max. Static Efficiency | 53.9 % |
| Max. allowed Medium Temperature | 60 °C |
| Max. allowed Medium Temperature at Rated Current | 60 °C |
| Max. allowed Ambient Temperature | 60 °C |
| Max. allowed Ambient Temperature at Rated Current | 60 °C |
| Max. number of revolutions | 1485 1/min |
| Max. Total Efficiency | 54.2 % |
| Min. Operating Temperature | -25 °C |
| Motor Protection | TEC |
| Motor type | EC |
| Nominal frequency | 50 Hz |
| Rated Speed | 1250 1/min |
| Nominal power consumption | 164 W |
| Nominal voltage | 230 V |
| Nominal current | 1.3 A |
| Direction of blow out | Shifted by 90° compared to suction |
