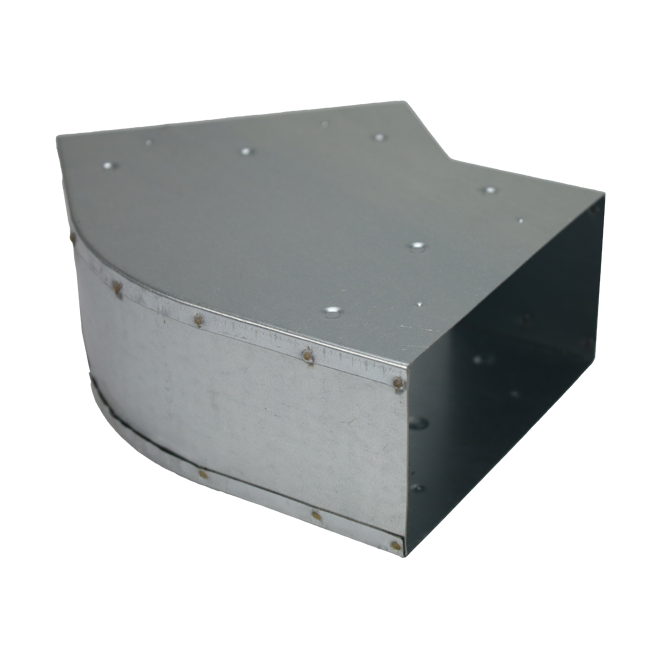

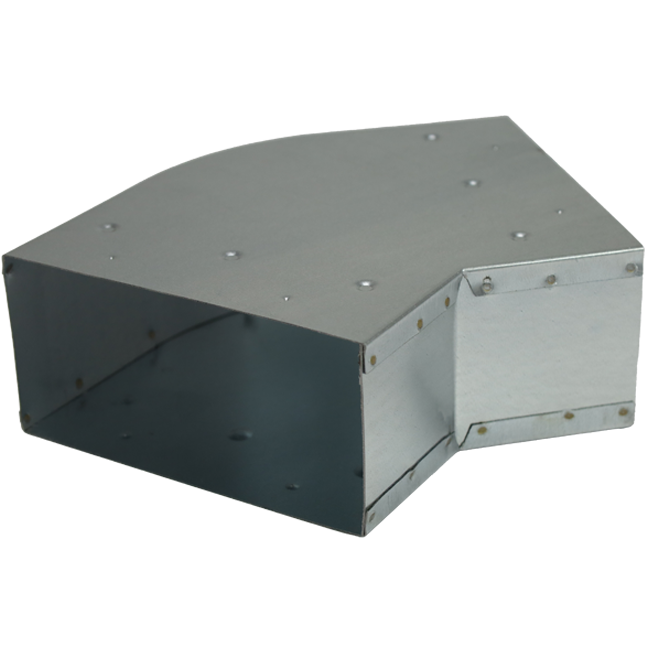

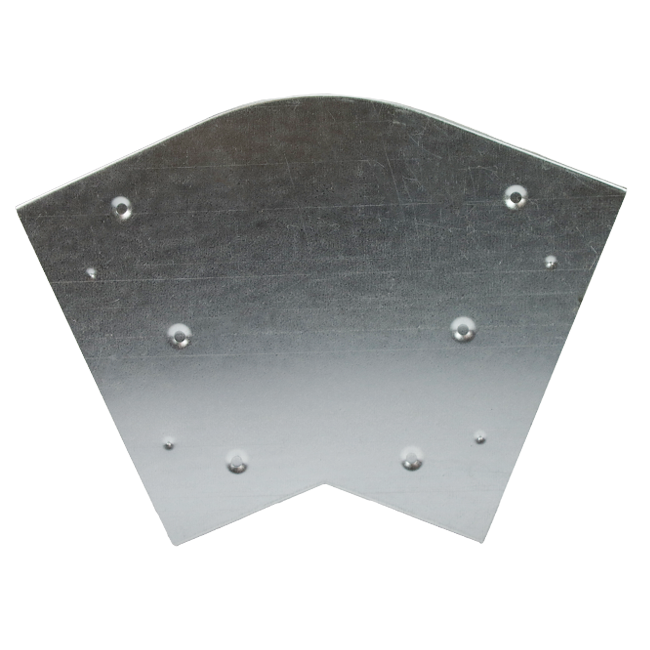

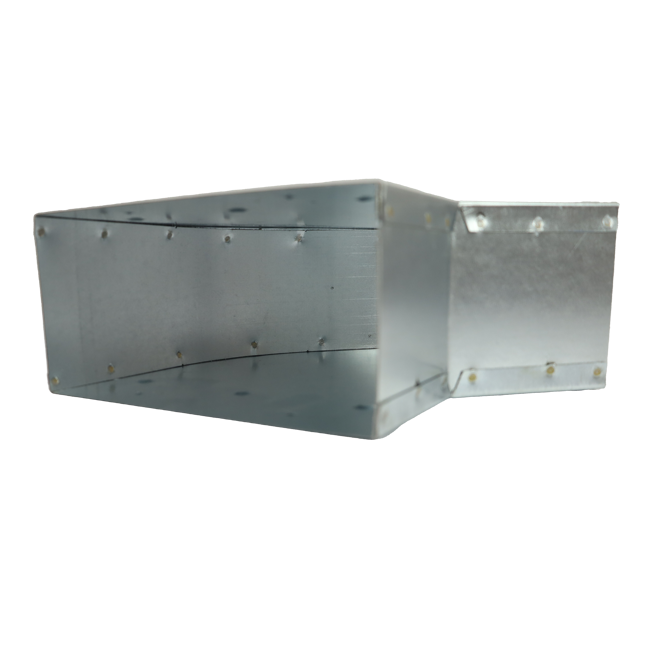

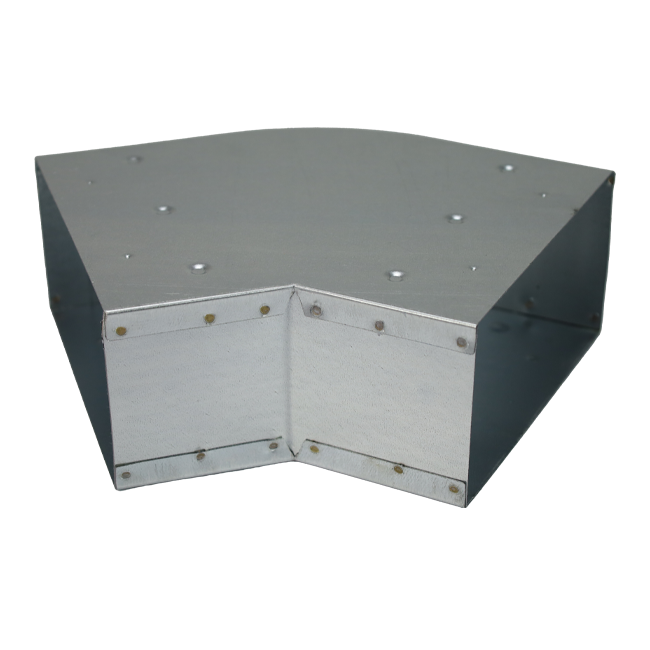

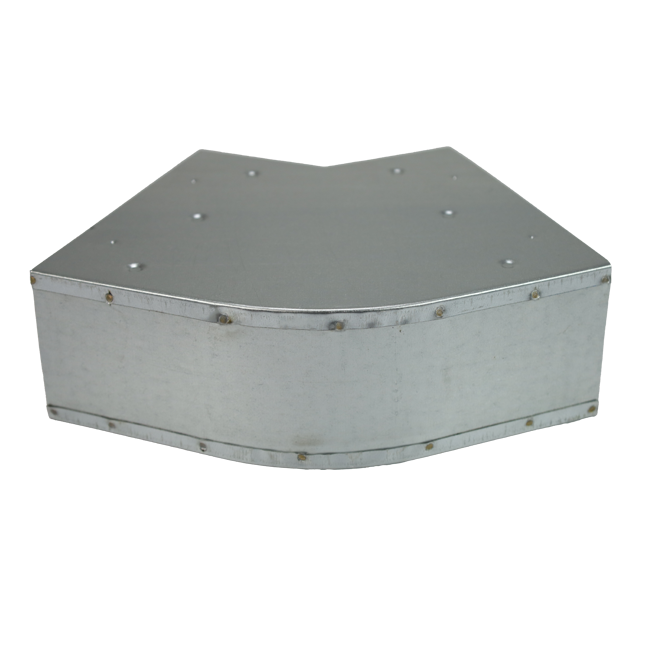

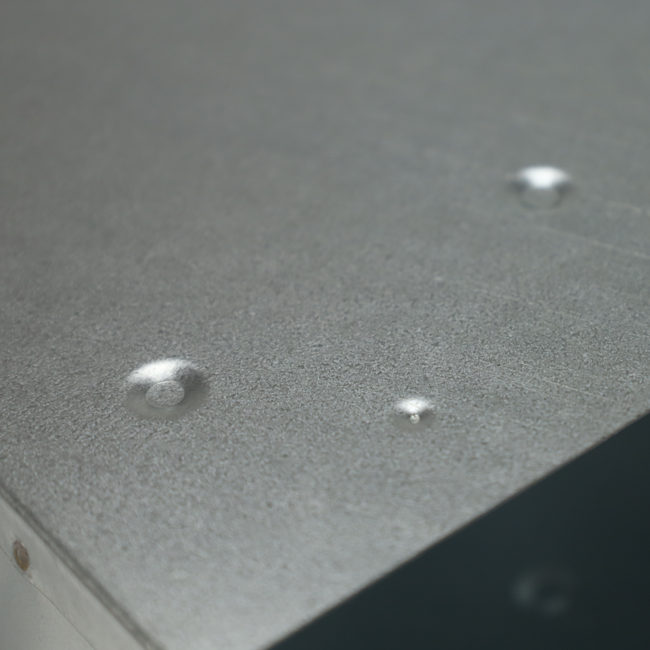

Galvanised 45 degree bend dimensions 220x80 mm

The galvanised 45-degree bend with dimensions 220x80 mm has an inlet end that falls directly over a duct, with no additional fittings needed to connect the bend to a galvanised flat duct.

Flat channel ducts are galvanised flat ducts that are integrated into a floor or concrete to allow air distribution or extraction in buildings. These flexible products are designed to be invisible and are mostly used in new construction and renovation projects. Furthermore, a galvanised flat duct can be used in walls, floors and/or ceilings. Combined with a straight galvanised flat duct and various fittings, a ventilation duct can be constructed as required. There are both round and rectangular galvanised flat ducts. The advantages of galvanised flat ducts include: efficient air stream, space saving, noise reduction and design flexibility.

Product specifications

Our collapse air ducts are specially designed for application in residential construction and floors equivalent to residential construction. In addition, these durable products are manufactured from high-quality galvanised steel. This steel is provided with a corrosion-resistant zinc coating, applied according to the reliable Sendzimir process, in which a two-sided zinc layer is applied. This guarantees robust and durable protection against corrosion, in accordance with the NEN-EN 10346 and NEN-EN 10143 standards.

Depending on the dimensions of the air duct, we choose the most suitable sheet thickness to ensure robustness and functionality. For galvanised flat ducts in the dimensions 170x80 mm, a 0.5 mm sheet thickness is used, while the larger dimensions such as 220x80 mm mm and 300x80 mm are executed in a 0.6 mm sheet. The cross connections in rectangular galvanised flat ducts are designed as sliding connections, using a coupling piece. These joints are securely fastened with self-drilling screws. To prevent water or cement from entering the air duct, the connections are finished with PVC tape. Longitudinal joints are made using a flanged or spot-welded connection. These properties make our galvanised collapsible air ducts a reliable choice for construction projects where durability and quality are paramount.

Brand	Econox
Category	Flat Ducts 220x80mm
GTIN	8719544040268
Manufacturer's item number	10062022
Article number	10062022

Specifications

Category code	179
Model	Uninsulated duct
Material duct	Steel
Material quality duct	Other
Wall thickness duct	0.5 mm
Outer surface protection	Sendzimir galvanised
Inner surface protection	Sendzimir galvanised
Outside colour	Zinc
Nominal duct width	220 mm
Nominal duct height	82 mm
Connection 1	Insert end
Connection 2	Insert end
Outer bend model	Smooth bend
Inner bend model	Smooth bend
Change of direction	Horizontal
Bend angle	45 °
Length of connection 1	165 mm
Working length connection 1	121 mm
Length of connection 2	165 mm
Working length connection 2	120 mm
Max. overpressure	1000 Pa
Air tightness class according to EN 1751	C
Embeddable in concrete	Yes
