Good points
- Incl. spring return
- Fixed cable
- Overload safe
- IP42 protection class

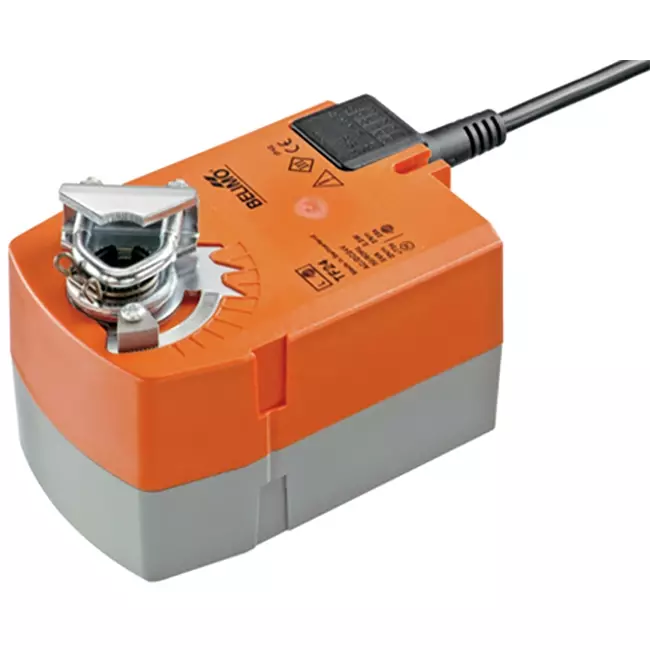

Belimo Rotary Damper Actuator with Spring Return 24V - Open/Close - 2.5 Nm - TF24
The Belimo TF24 is a compact rotary damper actuator with spring return designed for open/close control of small air damper sections up to approx. 0.5 m² in technical building installations. The actuator operates on an open/close signal: when supply voltage is present, it moves to the operating position and tensions the internal return springs. In the event of a power failure, the damper automatically and independently returns to the safe position, powered by the spring energy. This makes the actuator suitable for applications requiring a predefined safety position, such as fire/smoke and emergency ventilation dampers in smaller air ducts. The motor achieves a 90° rotation angle in 75 seconds, and the spring return closes the damper in less than 25 seconds. The standby power consumption is 1.5 W and the motor's noise level is 50 dB(A). With a torque of 2.5 Nm and a compact size, it is ideally suited for small dampers in ventilation systems.
Advantages and Features
- Compact and lightweight: Weighing only 0.62 kg with a torque of 2.5 Nm, the actuator is ideal for small air damper sections up to approx. 0.5 m² where space is limited.
- Automatic spring return on power failure: The damper returns to the safety position within 25 seconds without external power or control.
- Adjustable direction of movement via L/R installation: The rotation direction of both the motor and spring return is determined during installation, allowing flexible use in various damper configurations.
- Adjustable rotation angle: The rotation angle is mechanically adjustable from 37% in increments of 2.5% up to a maximum of 95°, enabling precise adaptation to the damper’s opening range.
- Overload protected without limit switches: The actuator automatically stops at the mechanical end stop, preventing wear and simplifying installation.
- IP42 protection class: The actuator is protected against dripping water and ingress of solid objects, making it suitable for use in protected indoor installations such as air handling units and ventilation systems.
Installation, Maintenance and Applications
The actuator mounts directly onto the damper shaft using the included universal clamp ring, suitable for shaft diameters from 6 to 12.7 mm. The shaft must be at least 84 mm long and extend at least 20 mm. An included anti-rotation device prevents the actuator from rotating with the shaft. The direction of movement for both motor and spring return is set via the installation orientation (L/R). The rotation angle is mechanically adjustable via stops up to a maximum of 95°. The TF24 does not have a manual override. Electrical connection is via a fixed 1-metre cable with two cores of 0.75 mm². The actuator is maintenance-free and suitable for open/close control of small air damper sections in ventilation units, fan coil units, smaller air handling units, and emergency ventilation dampers in commercial and residential building installations.
| Brand | Belimo |
| Category | Belimo damper actuators |
| GTIN | 7630498115677 |
| Manufacturer's item number | TF24 |
| Article number | 23010064 |

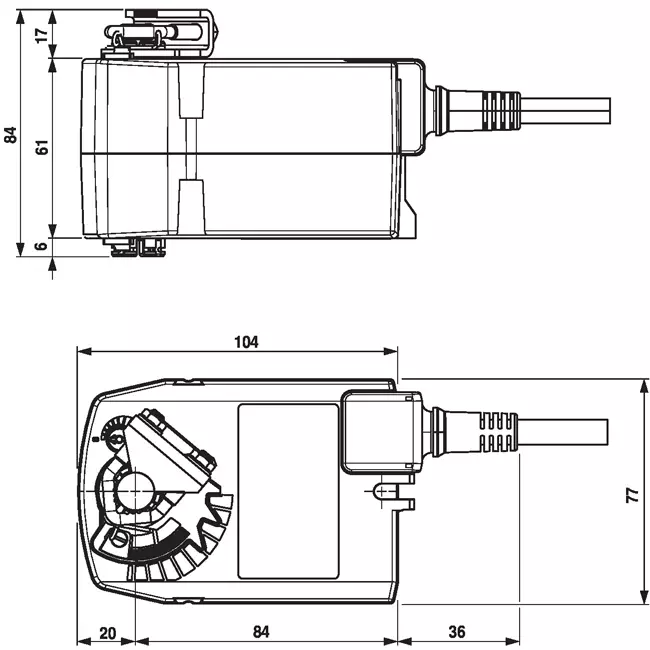

Specifications
| Category code | 101 |
| Width | 120 mm |
| Height | 85 mm |
| Depth | 200 mm |
| Model | Rotating |
| Housing material | Plastic |
| Degree of protection (IP) | IP42 |
| Max. electric power input | 5 A |
| Control signal | 2-point |
| Degree of protection (NEMA) | 2 |
| Explosion-proof | No |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 50 °C |
| Supply voltage | 24 V AC/DC |
| Position reporting system | None |
| Torque | 2.5 Nm |
| Transmission | With cogwheels |
| Suitable for air accessory | Yes |
| Suitable for valve | No |
| Connection cable length | 1 m |
| Regulation type splitrange | No |
| Energy consumption in operation | 2.5 W |
| Regulation type on/off | No |
| Energy consumption at rest | 1.5 W |
| Regulation type modulating | Yes |
| Auxiliary contacts optional | No |
| Return at zero supply voltage | Yes |
| With safety function | Yes |
| Adjustable operating range | No |
| Automatic stroke recognition | No |
| Auxiliary contacts | No |
| Suitable for manual operation | No |
| Self-adjusting travel length | No |
| With direct mount top flange according to ISO 5211 | No |
| End contacts | None |
| Adjustable position feedback signal | No |
| Operating time | 75 s |
| With mechanical setting indicator | Yes |
| Potential free switch contact | No |
| Deactivated when closed | Yes |
| Max. angle of rotation | 95 ° |
