Belimo Room Temperature Sensor Ni1000TK5000 - 01RT-1D-0

The Belimo room temperature sensor is designed for precise measurement of air temperature in various indoor environments. Thanks to its compact, white design (RAL 9003) and seamless wall mounting on a standard flush-mounted box, with wiring completely concealed within the wall, the sensor integrates unobtrusively into the interior. The passive Ni1000TK5000 element accurately converts the measured temperature into a resistance signal processed by the control system. Based on this measurement, the system is automatically regulated to maintain constant and efficient climate control.

Benefits and Features

• Ni1000TK5000 element: Suitable for temperature measurement in control installations operating with Ni1000 characteristics.
• Easy wall mounting: Suitable for installation on a standard flush-mounted box, with cable entry at the rear (for wiring inside the wall) or at the top/bottom (for wiring over the wall).
• Wide applicability: Seamlessly compatible with third-party controllers, making the sensor flexible for use in various HVAC systems.
• Measurement range 0 to +50°C: Tailored to the typical temperature range in occupied spaces for accurate and stable room temperature measurement.
• IP30 protection rating: With IP30 certification, the sensor is protected against the ingress of solid objects and contact, contributing to safe operation in heavily used areas.

Installation, Maintenance and Applications

The sensor is mounted on the wall using the supplied screws, preferably on a standard flush-mounted box in a representative location within the room. Wiring can be connected either from inside the wall or over the wall via spring terminals. Due to its passive design, no power supply is required. The sensor is used in commercial and residential buildings for room temperature measurement in conjunction with an external controller or BMS.

Practical Information

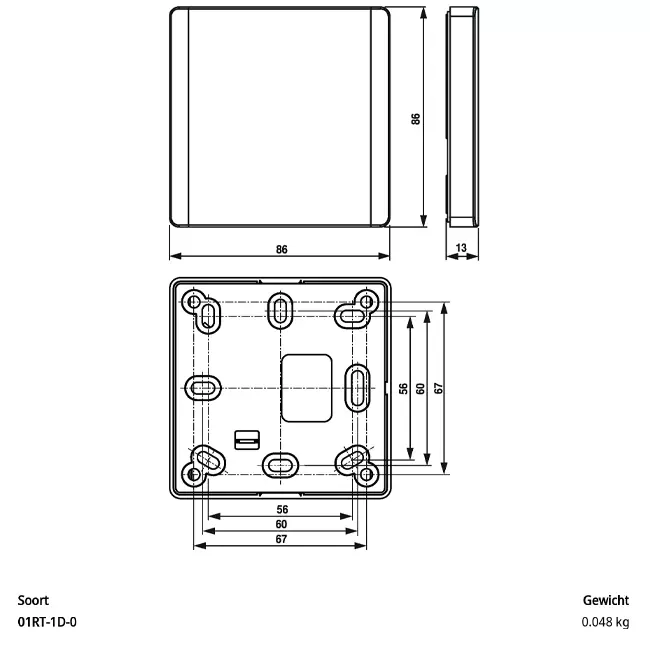

The room temperature sensor is housed in a flat white polycarbonate enclosure measuring 86 x 86 x 13 mm. The Ni1000TK5000 element directly transmits the resistance signal to the controller. The sensor is dust-protected in accordance with IP30 and suitable for use in dry indoor environments. This model is designed for easy integration into existing and new HVAC installations where room temperature measurement via a passive sensor is required.
