The Belimo duct and immersion temperature sensor is designed for measuring air and water temperatures in HVAC systems and, when used with an immersion sleeve, can also be applied in pipes. It features a fixed stainless steel probe and housing for stable and protected installation. The passive PT1000 element accurately converts the measured temperature into a resistance signal processed by the control system. Based on this measurement, the system is automatically regulated to ensure consistent and efficient climate control.
The sensor is suitable for mounting in air ducts and, when combined with an immersion sleeve, also in pipes. Correct positioning of the probe ensures representative temperature measurement within the medium. The housing allows for safe and clear connections via a terminal block. Due to its passive design, no power supply is required. The sensor is used in commercial buildings, residential construction, and industrial HVAC systems where reliable temperature measurement is essential.

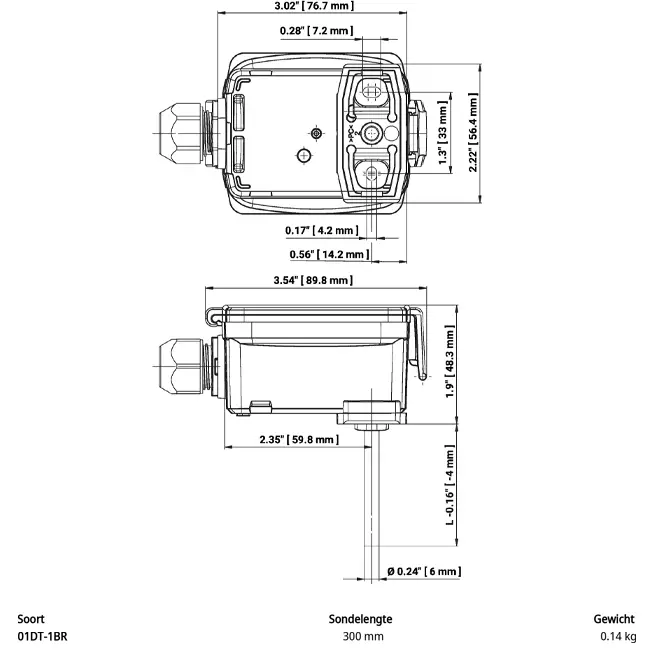

The sensor features a stainless steel probe 300 mm in length and 6 mm in diameter, enabling measurements deeper within the medium. The housing is made from impact-resistant plastic and includes a cable gland with strain relief for a reliable connection. The PT1000 element transmits the resistance signal directly to the controller. This version is suitable for both duct and pipe applications where robust installation and stable measurement are required.
| Brand | Belimo |
| Category | Sensors and controllers |
| GTIN | 7630498100260 |
| Manufacturer's item number | 01DT-1BR |
| Article number | 23010037 |
| Category code | 101 |
| With mounting material | Yes |
| Suitable for wall mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for duct mounting | Yes |
| Suitable for tube mounting | Yes |
| Suitable for air | Yes |
| Suitable for liquids | Yes |
| Suitable for gases | Yes |
| With housing | Yes |
| Sensor element inside housing | No |
| Sensor element outside housing | Yes |
| Fixed cable to sensor | No |
| Sensor length | 300 mm |
| Insert length | 300 mm |
| Diameter sensor element | 6 mm |
| Material element | Stainless steel |
| Technology | Other |
| Active temperature measurement | No |
| Passive temperature measurement | Yes |
| Average temperature measuring | No |
| Number of measuring points | 1 |
| Measurement of CO2 | No |
| Measurement of VOC | No |
| Measurement of relative air humidity | No |
| Measurement of absolute air humidity | No |
| Enthalpy measurement | No |
| Measurement of dewpoint | No |
| Particulate matter measurement (PM) | No |
| Temperature measuring range (min) | -50 °C |
| Temperature measuring range (max) | 160 °C |
| Number of measuring ranges | 1 |
| Offset setting possible | No |
| Trend representation | No |
| Error registration possible | No |
| Sensor type | Pt1000 |
| Type of power supply | None |
| Type of electric connection | Push-in clamp connection |
| With reverse polarity protection | No |
| Number of output signals | 1 |
| Ambient temperature (min) | -35 °C |
| Ambient temperature (max) | 50 °C |
| Explosion-proof | No |
| Degree of protection (IP) | IP65 |
| Housing colour | Orange |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Scope of application | Immersion tube/duct |
