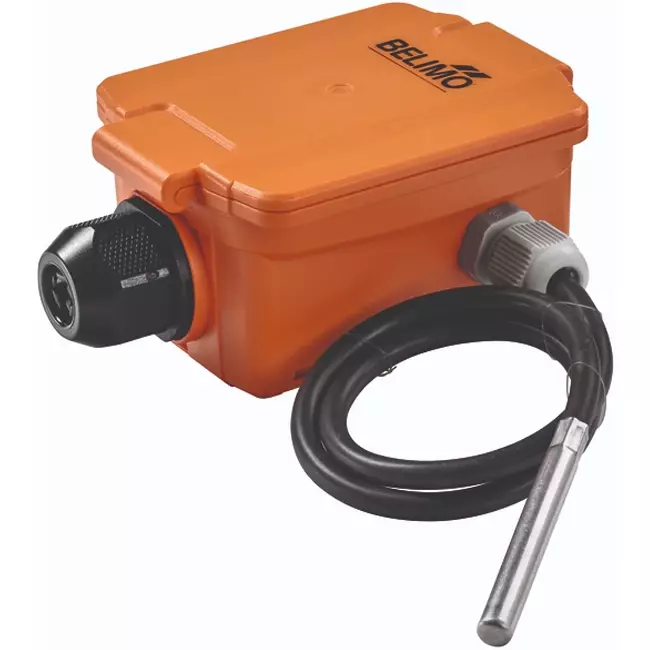

Belimo Cable Temperature Sensor 4-20 mA - Probe 50x6 mm - 2 Metres - 22CT-14H
The Belimo 22CT-14H is an active cable temperature sensor designed for measuring temperatures in both air ducts and pipes. The sensor features a stainless steel probe and a special cable for gap installations, making it easy to install even in hard-to-reach locations. The PT1000 class AA sensor element ensures precise measurement, while the 4-20 mA output signal provides reliable performance over long cable runs. With eight adjustable measuring ranges, the sensor is highly versatile for a wide range of HVAC applications.
Benefits and Features
- Active 4-20 mA output signal: The current signal is immune to interference on the cabling and compatible with virtually all common control equipment and building management systems.
- PT1000 class AA sensor element: Provides stable and accurate temperature measurement with an accuracy of ±0.5°C at 21°C.
- Suitable for both air and water: The sensor can be used in air ducts as well as pipes, offering broad applicability across HVAC systems.
- Eight adjustable measuring ranges: Eight measuring ranges from -50 to +250°C can be selected via a plug-in jumper, customised to specific applications. The factory default is 0 to +160°C.
- Special cable for gap installations: The flexible 2-metre cable allows installation in difficult-to-access locations within systems.
- IP65 / NEMA 4X protection rating: Fully protected against dust and water jets, suitable for use in technical rooms and humid environments.
Installation, Maintenance and Applications
The stainless steel probe measuring 50 mm in length and 6 mm in diameter is ready for direct installation in air ducts. Electrical connection is made via a pluggable terminal block (max. 2.5 mm²). The sensor is suitable for use in air handling units, pipe networks, and climate control installations in commercial and industrial buildings.
Practical Information

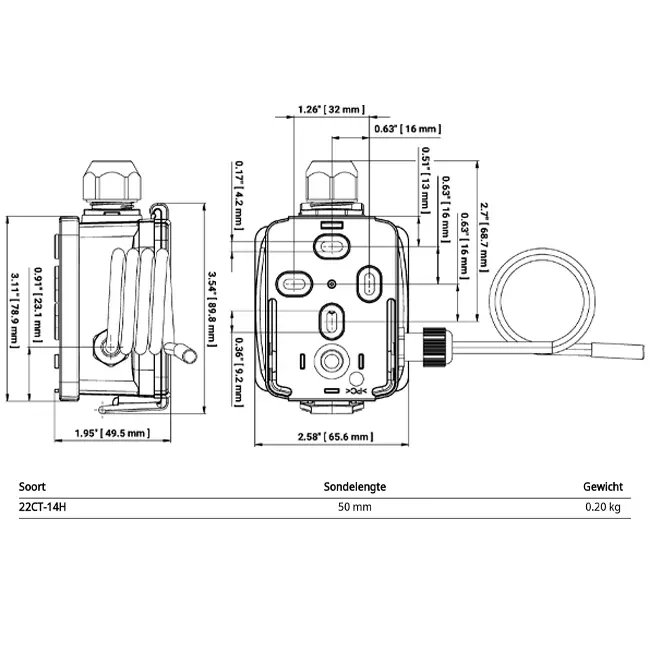

The sensor is equipped with a stainless steel probe of 50 mm length and 6 mm diameter, with a fixed 2-metre connection cable. The medium temperature range is from -50 to +180°C. The nominal voltage is DC 24 V. The sensor weighs 0.20 kg and features a UV-resistant polycarbonate casing with an NBR seal.
| Brand | Belimo |
| Category | Sensors and controllers |
| GTIN | 7630498101014 |
| Manufacturer's item number | 22CT-14H |
| Article number | 23010046 |
Specifications
| Category code | 101 |
| With mounting material | Yes |
| Suitable for wall mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for duct mounting | Yes |
| Suitable for tube mounting | Yes |
| Suitable for air | Yes |
| Suitable for liquids | Yes |
| Suitable for gases | No |
| With housing | Yes |
| Cover attachment | Screwed |
| Sensor element inside housing | No |
| Sensor element outside housing | Yes |
| Fixed cable to sensor | Yes |
| Cable length | 2 m |
| Sensor length | 50 mm |
| Insert length | 50 mm |
| Diameter sensor element | 6 mm |
| Material element | Stainless steel |
| Technology | Other |
| Active temperature measurement | Yes |
| Passive temperature measurement | No |
| Average temperature measuring | No |
| Number of measuring points | 1 |
| Measurement of CO2 | No |
| Measurement of VOC | No |
| Measurement of relative air humidity | No |
| Measurement of absolute air humidity | No |
| Enthalpy measurement | No |
| Measurement of dewpoint | No |
| Particulate matter measurement (PM) | No |
| Temperature measuring range (min) | -50 °C |
| Temperature measuring range (max) | 250 °C |
| Number of measuring ranges | 8 |
| Offset setting possible | Yes |
| Trend representation | No |
| Error registration possible | No |
| Potentiometer with adjustment knob | Yes |
| Supporting protocol for BACnet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for MP (multi point) | No |
| Supporting protocol for KNX | No |
| LoRa technology | No |
| NFC (Near Field Communication) | No |
| Bluetooth | No |
| Wi-Fi-compatible | No |
| Wireless | No |
| With display | No |
| Rated supply voltage DC (min) | 24 V |
| Rated supply voltage DC (max) | 24 V |
| Number of output signals | 1 |
| Number of output ranges 4 mA ... 20 mA | 1 |
| Max. ambient humidity (non-condensing) | 95 % |
| Ambient temperature (min) | -35 °C |
| Ambient temperature (max) | 50 °C |
| Scope of application | Immersion tube/duct |
