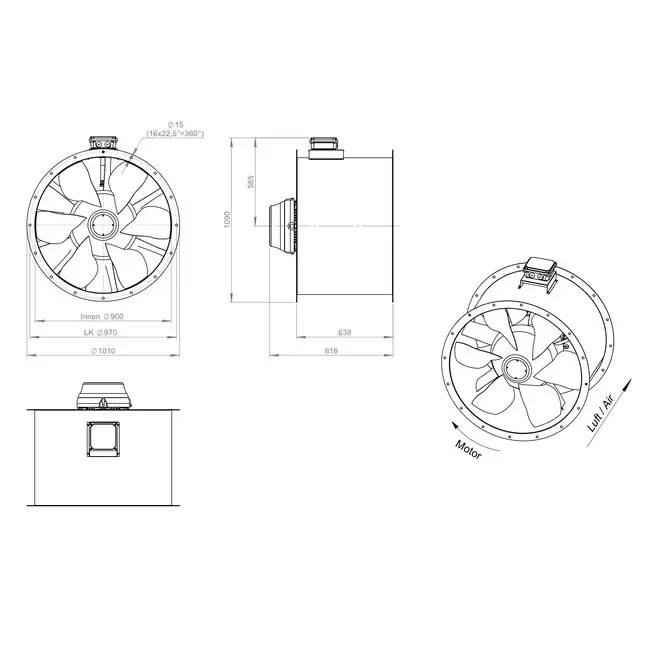

Axial 900 mm Duct Fan Flue Gas F400 – AL 900 D84U F4 03 CFG
The AL 900 D84U F4 03 CFG from Ruck is an innovative and highly efficient axial fan, specifically designed for flue gas extraction and daily ventilation. By applying the latest numerical calculation methods, the design has been optimized for maximum system efficiency. The adjustable blade positions provide a wide operating range, making this model suitable for various applications. This fan is F400 certified and designed for continuous use up to 60 °C, making it an excellent dual-use fan: for both air exchange and flue gas heat extraction in case of fire.
Robust Design with Optimized Weight
The AL 900 D84U F4 03 CFG features a robust yet lightweight construction. This simplifies installation and makes maintenance more efficient. The optimized design results in a lower weight without compromising performance or durability. The fan is equipped with an IE3 motor with two-speed control via a Dahlander switching, allowing easy switching between air volumes. The aerodynamically shaped rotor and stator blades ensure high efficiency in medium-pressure applications. This makes the fan ideal for commercial and industrial installations where fire safety and reliability are crucial.
Quality Guaranteed
Ruck Ventilatoren GmbH is a renowned German manufacturer of high-quality ventilation systems. With over 300 specialists, the company develops innovative solutions daily that meet the strictest standards for fire safety, energy efficiency, and sustainability. The AL 900 D84U F4 03 CFG also complies with current ERP guidelines and offers reliable performance under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322692 |
| Manufacturer's item number | AL 900 D84U F4 03 CFG |
| Article number | 65171275 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Width | 1010 mm |
| Height | 1010 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 55640 m³/h |
| Power consumption | 17549 kW |
| Suitable for frequency control | Yes |
| Suitable for transformer control | No |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter, suction | 900 mm |
| Duct diameter, exhaust | 900 mm |
