- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

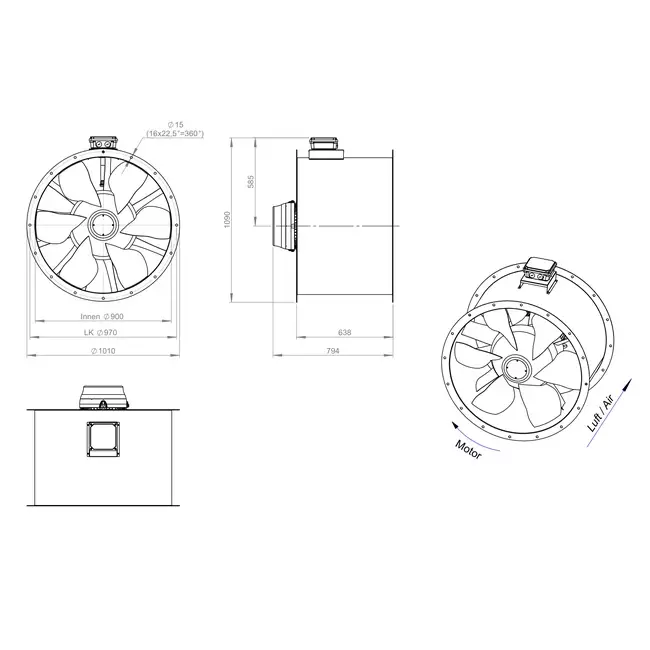

Axial 900 mm Duct Fan Flue Gas F400 – AL 900 D6 F4 03 CFG
The AL 900 D6 F4 03 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the use of the latest numerical design techniques, system efficiency has been improved and the operating range significantly expanded. The adjustable blade angles make this fan versatile for use in both commercial buildings and industrial ventilation systems.
Optimized Design for Flue Gas Exhaust and Standard Ventilation
This fan features a robust, lightweight construction that simplifies installation and maintenance. The built-in IEC standard motor is suitable for frequency control, allowing the fan to be operated flexibly and energy-efficiently. The aerodynamically shaped blades ensure a powerful airflow and increased efficiency. The AL 900 D6 F4 03 CFG is certified for flue gas exhaust up to 400 °C (F400) and is suitable for continuous operation at air temperatures up to 60 °C. This makes it ideal for dual-use applications such as regular ventilation and smoke and heat extraction in case of fire. It is supplied without a terminal box, but with a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation solutions. With a strong focus on innovation, energy efficiency, and sustainability, all products comply with current ERP guidelines. Ruck delivers reliable performance, even under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321992 |
| Manufacturer's item number | AL 900 D6 F4 03 CFG |
| Article number | 65170781 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 54259 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
