Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

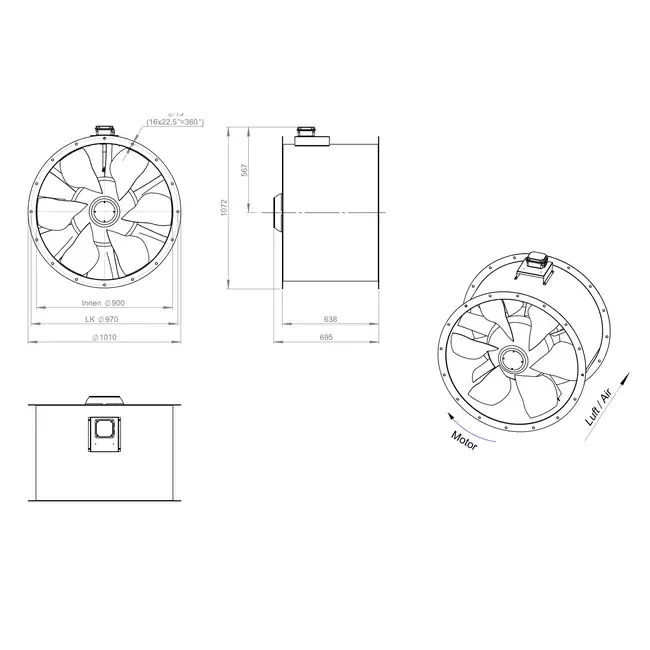

Axial 900 mm Duct Fan Flue Gas F400 – AL 900 D6 F4 02 CFG
The AL 900 D6 F4 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the use of advanced numerical design techniques, system efficiency has been improved and the operating range significantly expanded. The adjustable blades make this fan versatile for use in both commercial buildings and industrial ventilation systems.
Optimized Design for Flue Gas Exhaust and General Ventilation
The fan features a lightweight, robust housing that simplifies installation and maintenance. The integrated IEC standard motor is suitable for frequency control, allowing for flexible and energy-efficient operation. The aerodynamically shaped blades ensure high airflow and increased efficiency. The AL 900 D6 F4 02 CFG is certified for flue gas exhaust at temperatures up to 400 °C (F400) and is suitable for continuous operation at air temperatures up to 60 °C. This model is particularly suitable for dual-use applications, such as daily ventilation and smoke and heat exhaust. It is supplied without a terminal box but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation solutions. With a strong focus on energy efficiency, sustainability, and innovation, all products comply with current ERP guidelines and deliver reliable performance under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321985 |
| Manufacturer's item number | AL 900 D6 F4 02 CFG |
| Article number | 65170778 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 43305 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
