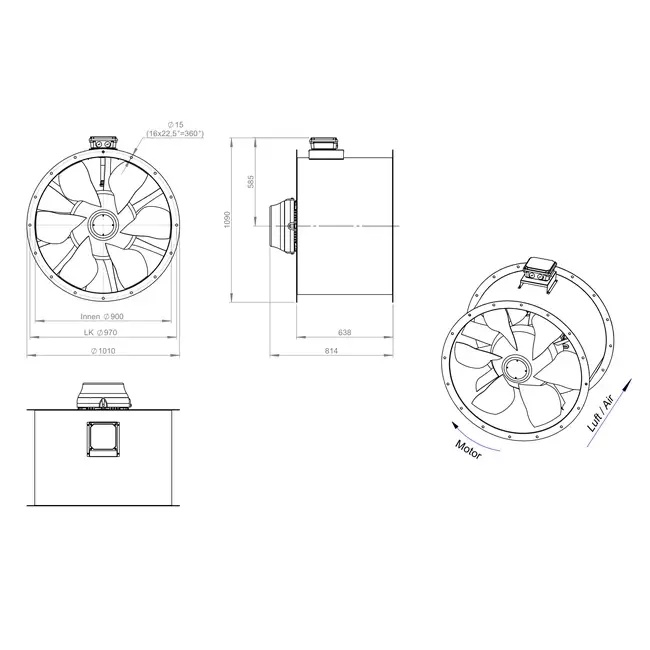

Axial 900 mm Duct Fan Flue Gas F400 – AL 900 D4 F4 05 CFG
The AL 900 D4 F4 05 CFG from Ruck is an innovative and highly efficient axial fan, developed for medium pressure applications. Thanks to the use of the latest numerical design techniques, system efficiency has been improved and the operating range has been expanded. The adjustable blades make this fan versatile for use in both commercial buildings and industrial ventilation projects.
Optimized Design for Flue Gas Exhaust and Standard Ventilation
With a robust yet lightweight design, this fan is easy to install and maintain. The integrated IEC standard motor is suitable for frequency control, ensuring flexible and energy-efficient operation. The aerodynamically shaped blades generate a powerful airflow and provide increased efficiency. The AL 900 D4 F4 05 CFG is certified for flue gas exhaust at temperatures up to 400 °C (F400) and is suitable for continuous operation at air temperatures up to 60 °C. This makes it ideal for dual-use applications such as daily ventilation and smoke and heat exhaust. It is supplied without a terminal box, but with a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation systems. With a strong focus on innovation, energy efficiency, and reliability, all products comply with current ERP guidelines and deliver reliable performance under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321961 |
| Manufacturer's item number | AL 900 D4 F4 05 CFG |
| Article number | 65170772 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 65926 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
