Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

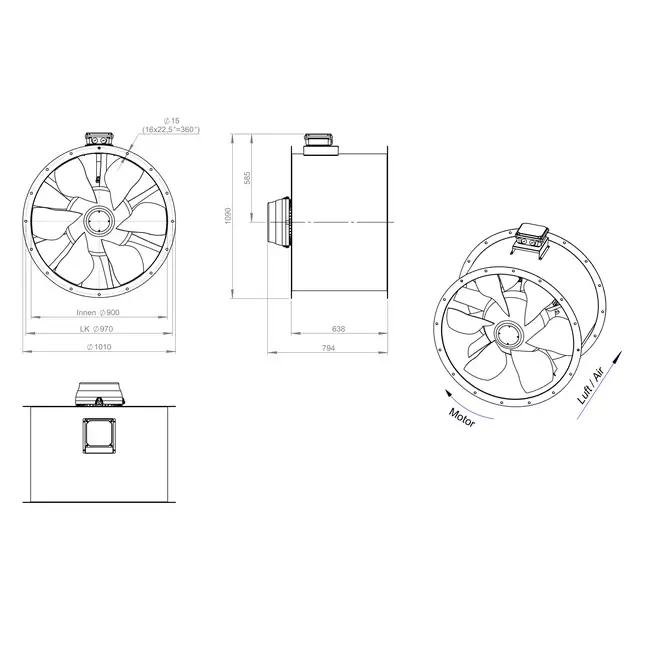

Axial 900 mm Duct Fan Flue Gas F400 – AL 900 D4 F4 04 CFG
The AL 900 D4 F4 04 CFG from Ruck is an innovative and energy-efficient axial fan, specifically designed for medium pressure applications. Thanks to the use of the latest numerical design techniques, system efficiency has been enhanced and the operating range significantly broadened. The adjustable blades make this fan versatile for both commercial and industrial ventilation systems.
Optimized Design for Smoke and Heat Extraction
This fan features a robust yet lightweight construction that simplifies installation and maintenance. The integrated IEC standard motor is suitable for frequency control, allowing the fan to be operated flexibly and energy-efficiently. The aerodynamically optimized blades generate a powerful airflow and contribute to increased efficiency. The AL 900 D4 F4 04 CFG is certified for flue gas extraction up to 400 °C (F400) and is suitable for continuous operation at air temperatures up to 60 °C – ideal for dual-use applications such as standard ventilation and smoke and heat extraction during a fire. It is supplied without a terminal box, but with a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation solutions. All products are developed with a strong focus on energy efficiency, innovation, and reliability, complying with current ERP guidelines. Ruck guarantees sustainable performance under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322012 |
| Manufacturer's item number | AL 900 D4 F4 04 CFG |
| Article number | 65170796 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 58774 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
