Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

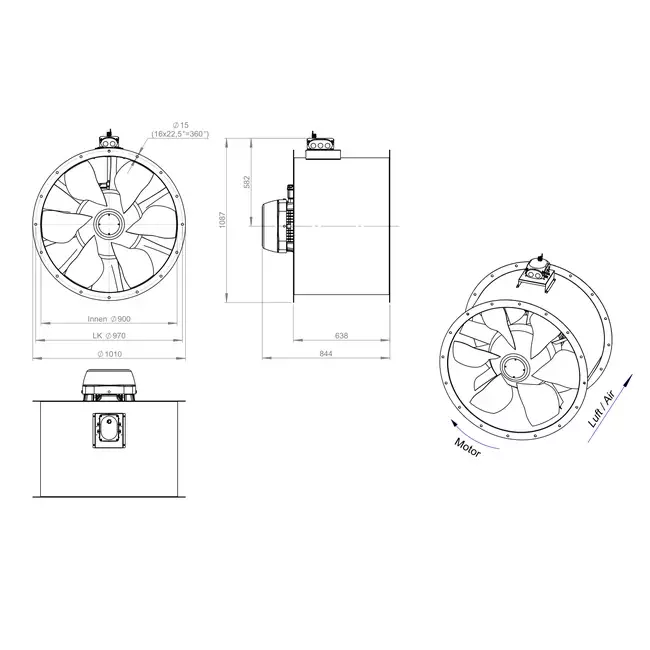

Axial 900 mm Duct Fan – AL 900 D84U 03 CFG
The AL 900 D84U 03 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the use of the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. The adjustable blades make this fan versatile for both commercial and industrial ventilation systems.
Optimized Design with 2-Stage IE3 Motor
The fan features a lightweight and robust housing, simplifying installation and maintenance. The integrated IE3 motor is 2-stage adjustable via a Dahlander connection, ensuring flexible and energy-efficient operation. The aerodynamically shaped blades generate a powerful airflow and contribute to increased efficiency. The AL 900 D84U 03 CFG is suitable for continuous operation at air temperatures up to 60 °C and provides reliable performance for a variety of standard ventilation applications. It is supplied without a terminal box but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation systems. With a strong focus on energy efficiency, sustainability, and innovation, all products comply with current ERP guidelines and deliver stable performance under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544322388 |
| Manufacturer's item number | AL 900 D84U 03 CFG |
| Article number | 65171055 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 55640 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
