Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

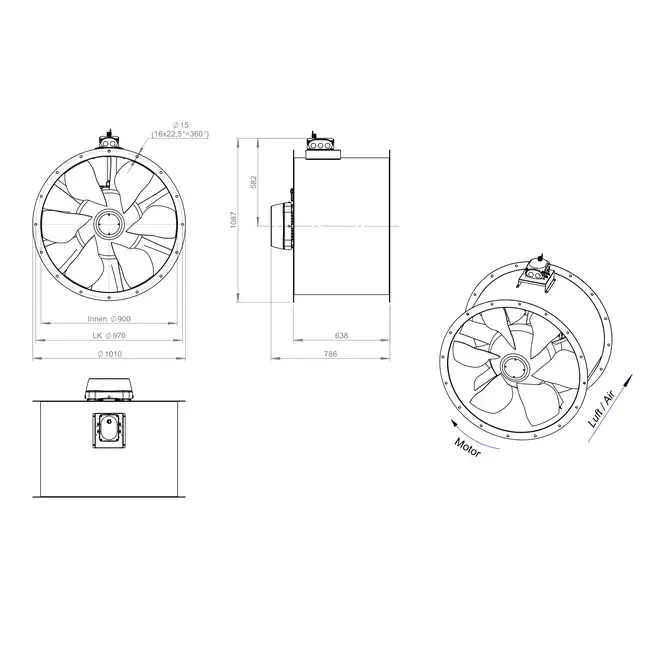

Axial 900 mm Duct Fan – AL 900 D84U 02 CFG
The AL 900 D84U 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. By utilizing advanced numerical design techniques, system efficiency has been improved and the operating range has been expanded. The adjustable blades make this fan versatile for use in both commercial buildings and industrial ventilation systems.
Optimized Design with 2-Stage IE3 Motor
Thanks to its lightweight, robust construction, this fan is easy to install and maintain. The integrated IE3 motor is 2-stage adjustable via a Dahlander connection, ensuring efficient and flexible operation. The aerodynamically shaped blades provide a powerful airflow and increased efficiency. The AL 900 D84U 02 CFG is suitable for continuous operation at air temperatures up to 60 °C, making it a reliable solution for various standard ventilation applications. It is supplied without a terminal box but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation systems. With a strong focus on innovation, energy efficiency, and sustainability, all products comply with current ERP guidelines and deliver reliable performance in demanding environments.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544322371 |
| Manufacturer's item number | AL 900 D84U 02 CFG |
| Article number | 65171052 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 58775 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
