Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

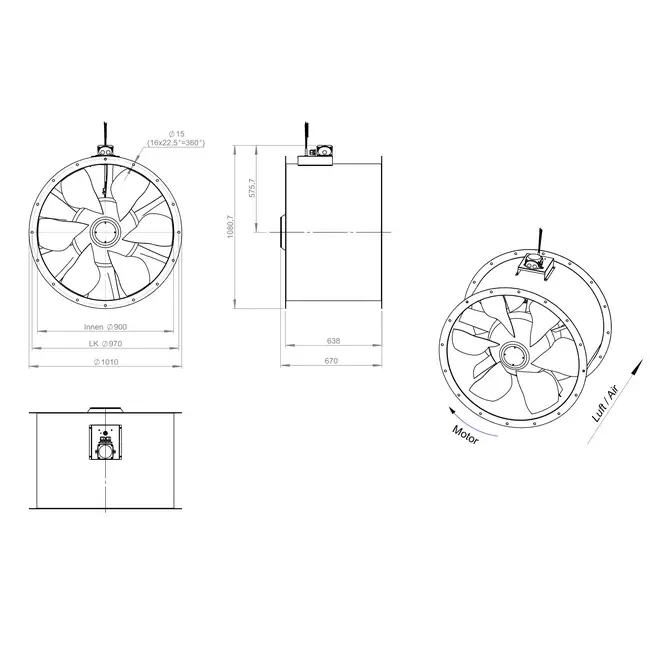

Axial 900 mm Duct Fan – AL 900 D84U 01 CFG
The AL 900 D84U 01 CFG from Ruck is an innovative and highly efficient axial fan, designed for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been enhanced and the operating range has been broadened. Thanks to the adjustable blades, this fan is versatile for use in both commercial buildings and industrial ventilation systems.
Optimized Design with 2-Stage IE3 Motor
This fan features a robust yet lightweight construction that ensures easy installation and maintenance. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, the AL 900 D84U 01 CFG offers flexibility and energy efficiency in operation. The aerodynamically shaped blades generate a powerful airflow with increased efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C, making it a sustainable solution for standard ventilation applications. It is supplied without a terminal box, but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation solutions. With a strong focus on innovation, sustainability, and energy efficiency, all products comply with current ERP guidelines and deliver reliable performance in a variety of environments.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321145 |
| Manufacturer's item number | AL 900 D84U 01 CFG |
| Article number | 65170192 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 37700 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
