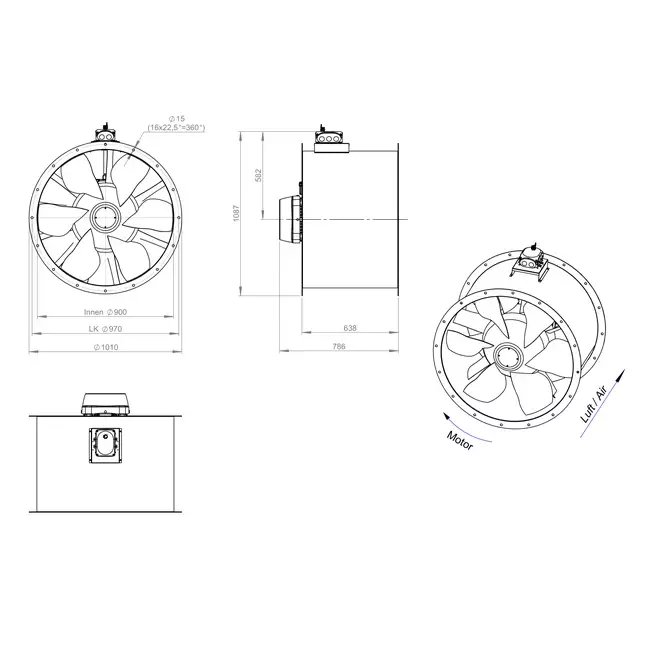

Axial 900 mm Duct Fan – AL 900 D6 03 CFG
The AL 900 D6 03 CFG from Ruck is an innovative, high-efficiency axial fan, specifically designed for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. Thanks to the adjustable blades, this fan is versatile for use in both commercial buildings and industrial ventilation systems.
Optimized Design for Sustainable Air Movement
This fan features a lightweight, robust design that ensures easy installation and reliable operation. The IEC standard motor is suitable for frequency control, allowing for energy-efficient and adaptable performance. The aerodynamically shaped blades deliver a powerful airflow with increased efficiency. The AL 900 D6 03 CFG is suitable for continuous operation at air temperatures up to 60 °C, providing reliable performance for a variety of standard ventilation applications. It is supplied without a terminal box, but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation solutions. With a strong focus on innovation, energy efficiency, and reliability, all products comply with current ERP guidelines and guarantee stable performance, even under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321138 |
| Manufacturer's item number | AL 900 D6 03 CFG |
| Article number | 65170189 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 54259 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
