Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

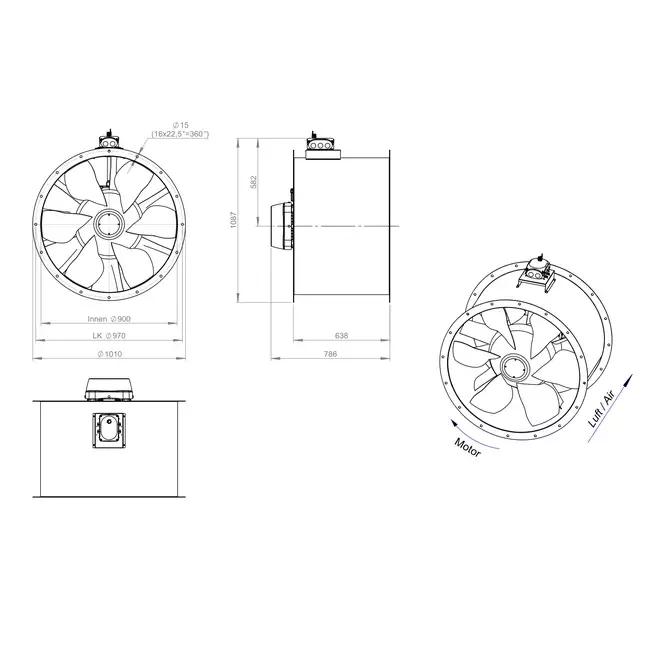

Axial 900 mm Duct Fan – AL 900 D4 04 CFG
The AL 900 D4 04 CFG from Ruck is an innovative and highly efficient axial fan, specifically designed for medium pressure applications. Thanks to the use of the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. The adjustable blades make this fan suitable for a wide range of applications in both commercial buildings and industrial installations.
Optimized Design for Reliable Air Movement
The fan features a lightweight and robust construction, simplifying installation and maintenance. The integrated IEC standard motor is suitable for frequency control, allowing for flexible and energy-efficient operation. The aerodynamically optimized blades generate a powerful airflow and contribute to increased efficiency. The AL 900 D4 04 CFG is suitable for continuous operation at air temperatures up to 60 °C and provides durable performance in various ventilation applications. It is supplied without a terminal box, but with a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation solutions. With a strong focus on innovation, energy efficiency, and sustainability, all products comply with current ERP guidelines and deliver reliable performance even under harsh conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321114 |
| Manufacturer's item number | AL 900 D4 04 CFG |
| Article number | 65170182 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 58774 m³/h |
| Suitable for frequency control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
