Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

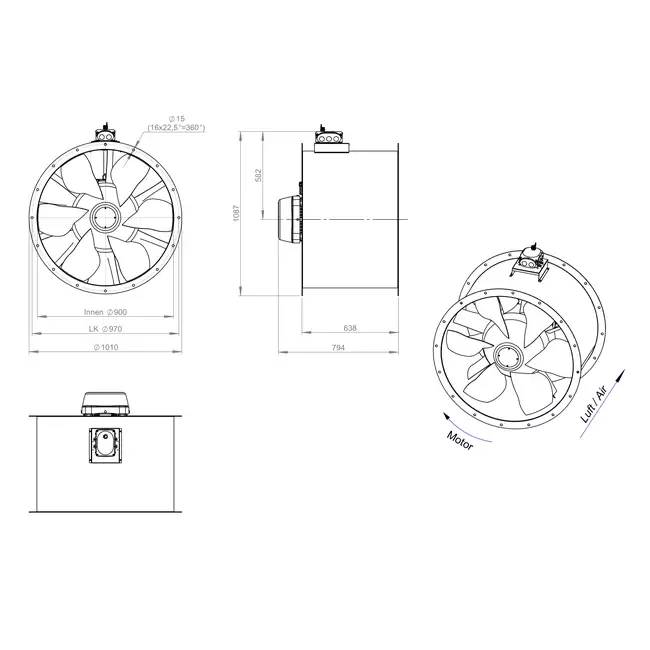

Axial 900 mm Duct Fan – AL 900 D4 03 CFG
The AL 900 D4 03 CFG from Ruck is an innovative and energy-efficient axial fan, developed for medium pressure applications. By utilizing advanced numerical design techniques, system efficiency has been improved and the operating range significantly expanded. The adjustable blades ensure a wide applicability within both commercial and industrial ventilation systems.
Optimized Design for Flexible Ventilation
Thanks to its robust and lightweight design, the AL 900 D4 03 CFG is easy to install and maintain. The fan is equipped with an IEC standard motor that is suitable for frequency control, allowing for flexible and energy-saving operation. The aerodynamically shaped blades generate a powerful airflow and contribute to increased efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and provides reliable performance in various ventilation applications. It is supplied without a terminal box but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation solutions. With a strong focus on innovation, sustainability, and energy efficiency, all products comply with current ERP guidelines and deliver stable performance, even under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321107 |
| Manufacturer's item number | AL 900 D4 03 CFG |
| Article number | 65170179 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 58078 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 900 mm |
