Axial 800 mm Duct Fan Flue Gas F400 – AL 800 D84U F4 03 CFG

The AL 800 D84U F4 03 CFG from Ruck is an innovative and highly efficient axial fan, developed for flue gas extraction and daily ventilation. Thanks to the application of the latest numerical calculation methods, the design has been optimized for maximum system efficiency. With adjustable blade angles, this model has a wide operating range, making it suitable for various applications. This fan is F400 certified and suitable for continuous use up to 60 °C. Thus, it is a reliable dual-use solution: for regular air exchange and flue gas heat extraction in case of fire.

Robust Design with Optimized Weight

The AL 800 D84U F4 03 CFG is designed with a sturdy yet lightweight construction. This simplifies installation and makes maintenance more efficient. The optimized design ensures weight reduction without compromising durability or performance. The fan is equipped with an IE3 motor that can be controlled in two speed stages via a Dahlander connection. This allows for flexible and energy-efficient operation. The aerodynamically shaped rotor and stator blades deliver excellent performance in medium-pressure applications. This fan is ideal for commercial and industrial environments where high safety standards are required.

Quality Guaranteed

Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in advanced ventilation technology. With over 300 employees, they develop products that meet the strictest standards in fire safety, energy efficiency, and reliability. The AL 800 D84U F4 03 CFG complies with current ERP guidelines and is built for long-lasting and reliable performance, even under harsh conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544322678
Manufacturer's item number	AL 800 D84U F4 03 CFG
Article number	65171262

Specifications

Category code	35

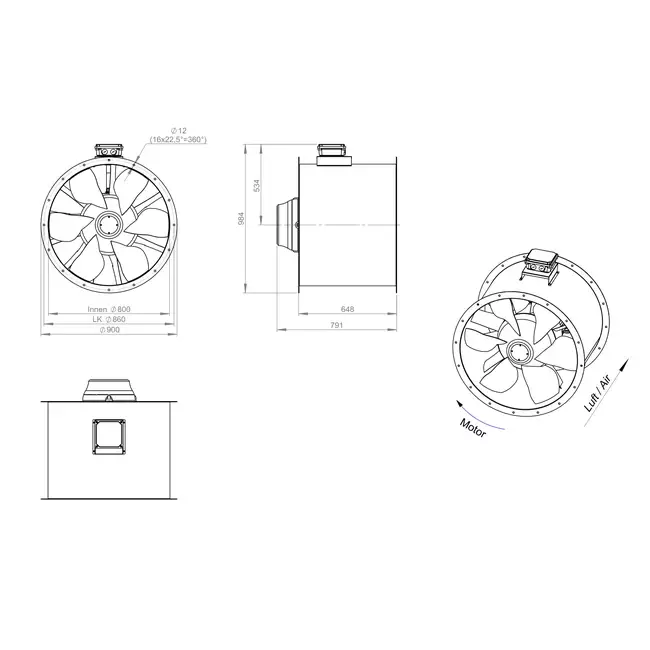

Length	648 mm
Connection	Insert end
Width	900 mm
Height	900 mm
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	58230 m³/h
Power consumption	20302 kW
Suitable for frequency control	Yes
Suitable for transformer control	No
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter, suction	800 mm
Duct diameter, exhaust	800 mm
