Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled
Axial 800 mm Duct Fan Flue Gas F400 – AL 800 D84U F4 01 CFG
The AL 800 D84U F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. The adjustable blade angles make this fan suitable for a wide range of applications in commercial buildings and industry.
Optimized Design with 2-Stage Control
This fan features a robust yet lightweight design, simplifying installation and maintenance. The integrated IE3 motor is 2-stage controllable via a Dahlander connection, allowing the fan to be efficiently and flexibly adjusted to the air volume. The aerodynamically optimized blades ensure a powerful airflow and high efficiency. The AL 800 D84U F4 01 CFG is certified for flue gas discharge up to 400 °C (F400) and is suitable for continuous operation at temperatures up to 60 °C. This makes the fan ideal for dual-use applications, such as regular ventilation and smoke and heat extraction during a fire. It is supplied without a terminal box but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation systems. With a strong focus on innovation, energy efficiency, and sustainability, all products comply with current ERP guidelines and deliver reliable performance under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321732 |
| Manufacturer's item number | AL 800 D84U F4 01 CFG |
| Article number | 65170613 |
Specifications
| Category code | 35 |

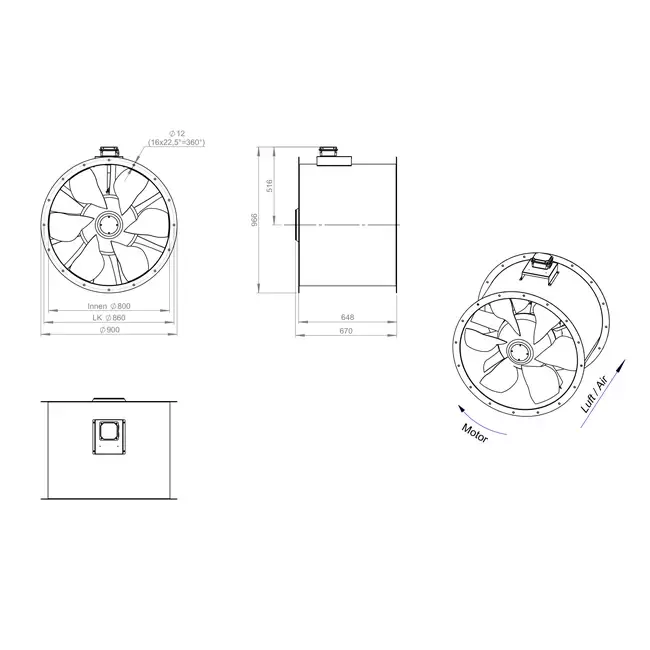

| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 38420 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
