Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

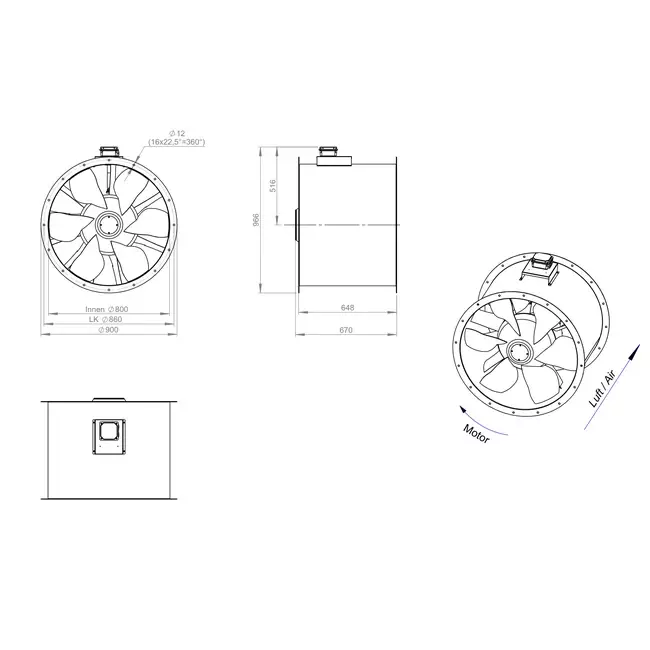

Axial 800 mm Duct Fan Flue Gas F400 – AL 800 D6 F4 03 CFG
The AL 800 D6 F4 03 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been enhanced and the operating range has been broadened. Thanks to the adjustable blade angles, this fan is widely applicable in both commercial and industrial ventilation systems.
Optimized Design for Flue Gas Exhaust and Standard Ventilation
The fan features a lightweight and robust construction, ensuring easy installation and maintenance. The built-in IEC standard motor is suitable for frequency control, allowing for flexible and energy-efficient operation. The aerodynamically optimized blades provide a powerful airflow and high efficiency. The AL 800 D6 F4 03 CFG is certified for flue gas exhaust at temperatures up to 400 °C (F400) and is suitable for continuous operation at air temperatures up to 60 °C. This makes the fan perfect for dual-use applications: both daily ventilation and smoke and heat exhaust. It is supplied without a terminal box, but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation solutions. With years of experience, a strong focus on innovation and energy efficiency, and compliance with current ERP guidelines, Ruck delivers sustainable, reliable performance – even under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321756 |
| Manufacturer's item number | AL 800 D6 F4 03 CFG |
| Article number | 65170621 |
Specifications
| Category code | 35 |
| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 38110 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
