Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

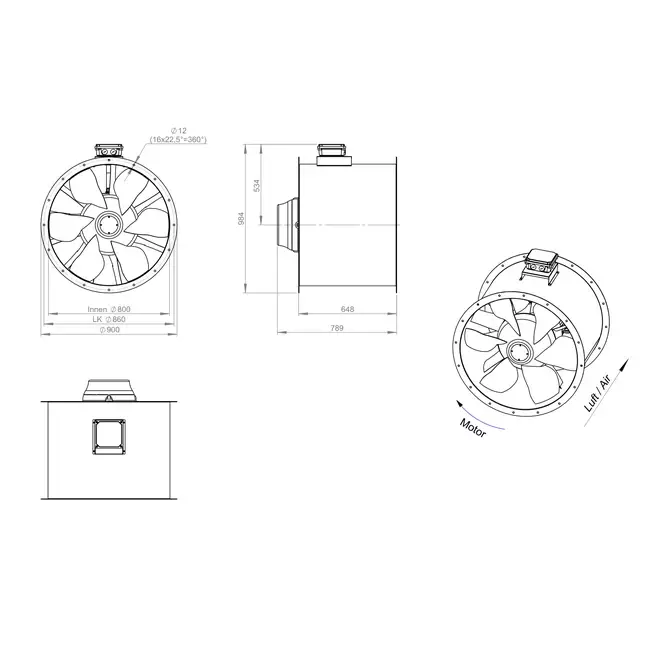

Axial 800 mm Duct Fan Flue Gas F400 – AL 800 D4 F4 06 CFG
The AL 800 D4 F4 06 CFG from Ruck is an innovative and highly efficient axial fan, designed for medium pressure applications. Thanks to the use of the latest numerical design techniques, system efficiency has been improved and the operating range has been broadened. The adjustable blades provide a wide applicability within commercial buildings and industrial ventilation systems.
Optimized Design for Flue Gas Exhaust and Standard Ventilation
With a lightweight, robust construction, this fan is easy to install and maintain. The integrated IEC standard motor is suitable for frequency control, ensuring flexible, energy-efficient operation. The aerodynamically shaped blades generate a high airflow and provide increased efficiency. The AL 800 D4 F4 06 CFG is certified for flue gas exhaust at temperatures up to 400 °C (F400) and is suitable for continuous operation at air temperatures up to 60 °C. This makes it ideal for dual-use applications where both regular ventilation and smoke and heat exhaust are required. It is supplied without a terminal box, but with a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation solutions. By focusing on innovation, sustainability, and energy efficiency, all products comply with current ERP guidelines and deliver reliable performance in demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321725 |
| Manufacturer's item number | AL 800 D4 F4 06 CFG |
| Article number | 65170607 |
Specifications
| Category code | 35 |
| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 56430 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
