Good points

Brand: Ruck
AC motor
Rookgas F400
Frequency controlled

Axial 800 mm Duct Fan Flue Gas F400 – AL 800 D4 F4 05 CFG

The AL 800 D4 F4 05 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been enhanced and the operating range significantly broadened. The adjustable blades make this fan versatile for use in both commercial buildings and industrial ventilation projects.

Optimized Design for Flue Gas Exhaust and Standard Ventilation

This fan features a lightweight, robust design for easy installation and maintenance. The integrated IEC standard motor is frequency controllable, ensuring flexible and energy-efficient operation. The aerodynamically shaped blades generate a powerful airflow with increased efficiency. The AL 800 D4 F4 05 CFG is suitable for continuous operation up to 60 °C and is certified for flue gas exhaust in case of fire up to 400 °C (F400). This makes it particularly suitable for dual-use applications such as smoke and heat extraction as well as regular ventilation. It is supplied without a terminal box, but includes a cable for connecting an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation systems. With a focus on innovation, energy efficiency, and reliability, all products comply with current ERP guidelines. Ruck guarantees stable and durable performance, even under demanding conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321718
Manufacturer's item number	AL 800 D4 F4 05 CFG
Article number	65170598

Specifications

Category code	35

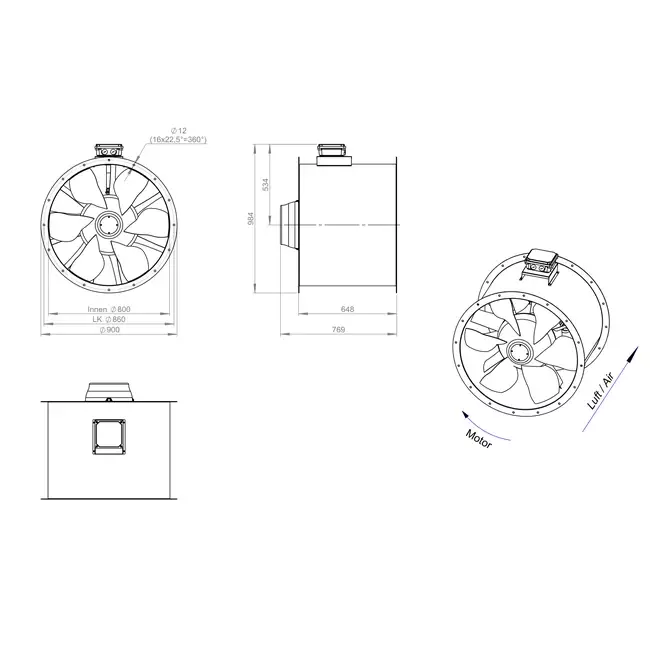

Length	648 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	51275 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	800 mm
