Good points

Brand: Ruck
AC motor
Rookgas F400
Frequency controlled

Axial 800 mm Duct Fan Flue Gas F400 – AL 800 D4 F4 04 CFG

The AL 800 D4 F4 04 CFG from Ruck is an innovative, high-efficiency axial fan, specifically designed for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been optimized and the operating range has been expanded. Thanks to the adjustable blade angles, this fan is flexibly applicable within commercial and industrial ventilation systems.

Optimized Design for Flue Gas Exhaust and Standard Ventilation

The fan features a robust, lightweight design that ensures easy installation and efficient handling. Equipped with an IEC standard motor suitable for frequency control, the AL 800 D4 F4 04 CFG offers flexible and energy-efficient operation. The aerodynamically shaped blades provide a powerful airflow and high efficiency. This model is suitable for continuous operation up to 60 °C and is certified for flue gas exhaust in case of fire up to 400 °C (F400), making it excellent for dual-use applications. It is supplied without a terminal box but includes a cable for connecting an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation solutions. With a strong focus on innovation, energy efficiency, and sustainability, all products comply with current ERP guidelines and deliver reliable performance under various conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321688
Manufacturer's item number	AL 800 D4 F4 04 CFG
Article number	65170586

Specifications

Category code	35

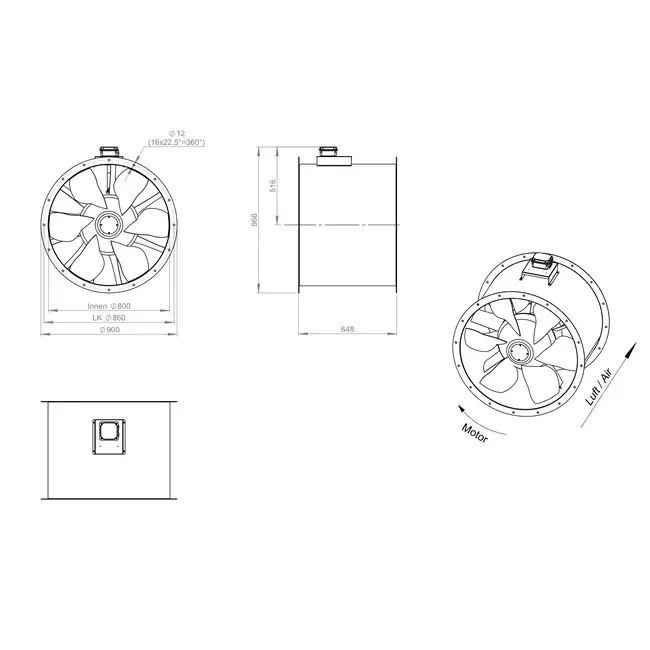

Length	648 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	36800 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	800 mm
