Axial 800 mm Duct Fan Flue Gas F400 – AL 800 D4 F4 03 CFG

The AL 800 D4 F4 03 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the use of the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. The adjustable blade angles make this fan suitable for various applications in both commercial buildings and industrial environments.

Optimized Design for Flue Gas Exhaust and Standard Ventilation

This fan features a lightweight, robust design that simplifies installation and handling. It is equipped with an IEC standard motor that is frequency controllable, ensuring flexible and energy-efficient operation. The aerodynamically optimized blades provide higher airflow and increased efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and is certified for flue gas exhaust up to 400 °C (F400). Therefore, it is ideal for dual-use applications. It is supplied without a terminal box but includes a cable for connecting an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer of axial fans. With years of experience and a focus on energy efficiency and reliable performance, all products comply with the latest ERP guidelines and offer sustainable performance in the most demanding applications.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321701
Manufacturer's item number	AL 800 D4 F4 03 CFG
Article number	65170592

Specifications

Category code	35

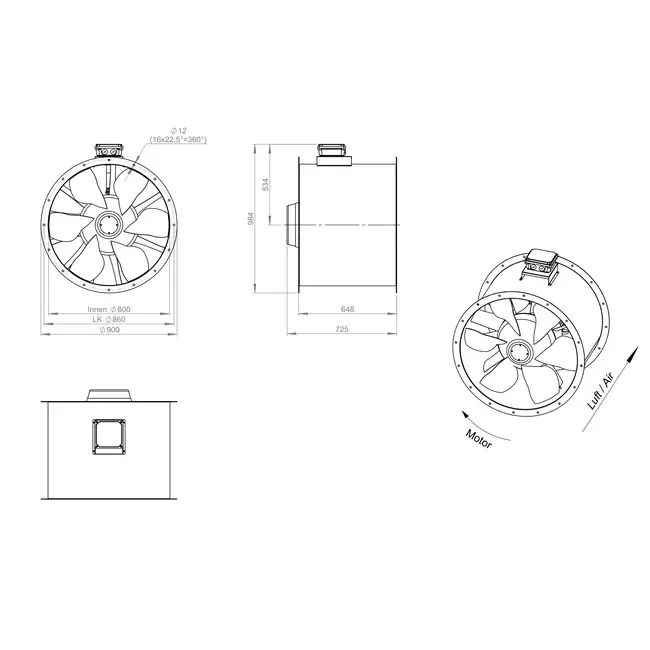

Length	648 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	46300 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	800 mm
