Good points
- Brand: Ruck
- AC motor
- Rookgas F300
- Frequency controlled

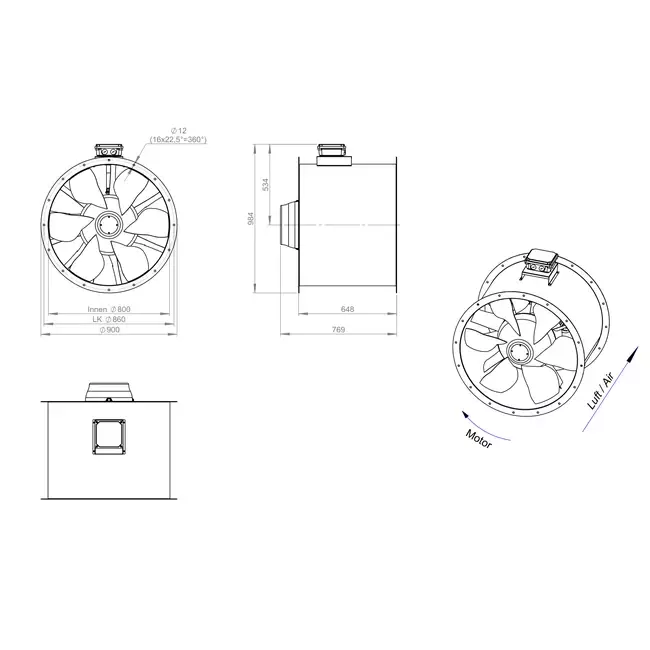

Axial 800 mm Duct Fan Flue Gas F300 – AL 800 D4 F3 05 CFG
The AL 800 D4 F3 05 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the use of advanced numerical design techniques, system efficiency has been improved and the operating range significantly expanded. The adjustable blades make this fan widely applicable in both commercial buildings and industrial ventilation projects.
Optimized Design for Flue Gas Exhaust and Standard Ventilation
The fan features a robust yet lightweight construction, simplifying installation and maintenance. The integrated IEC standard motor is suitable for frequency control, allowing the speed to be flexibly and energy-efficiently adjusted according to demand. The aerodynamically shaped blades ensure a powerful airflow and increased efficiency. The AL 800 D4 F3 05 CFG is certified for flue gas exhaust according to F300 and is suitable for continuous operation up to 60 °C – ideal for dual-use applications where both regular ventilation and flue gas and heat removal are required. It is supplied without a terminal box but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation solutions. With a strong focus on innovation, energy efficiency, and reliability, all products comply with current ERP guidelines and deliver sustainable performance in a variety of demanding applications.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321763 |
| Manufacturer's item number | AL 800 D4 F3 05 CFG |
| Article number | 65170629 |
Specifications
| Category code | 35 |
| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 51275 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
