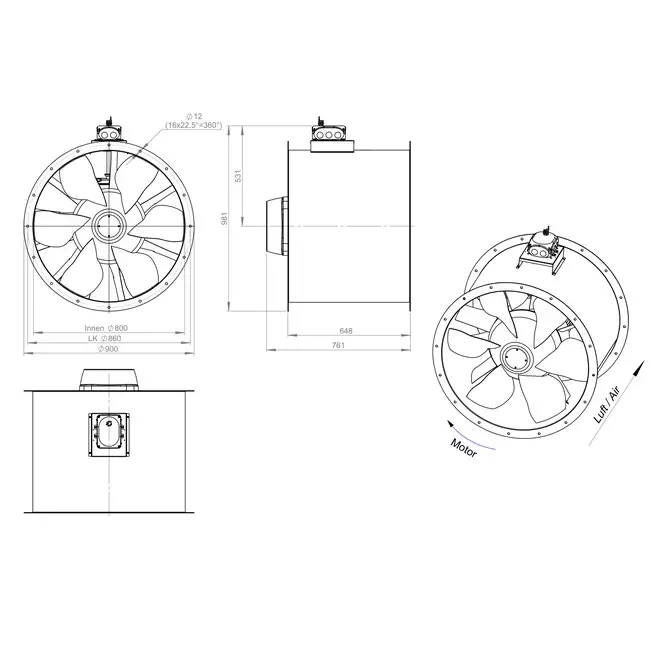

Axial 800 mm Duct Fan – AL 800 D84U 02 CFG
The AL 800 D84U 02 CFG from Ruck is an innovative axial fan with high efficiency, developed for medium pressure applications. Thanks to the application of the latest numerical simulation techniques, system efficiency has been increased and the operating range significantly broadened. With adjustable blades, this fan is widely applicable in both commercial buildings and industrial ventilation systems.
Optimized Design with Flexible 2-Stage Control
This fan features a lightweight, robust construction that allows for easy installation and reliable operation. The integrated IE3 motor is 2-stage controllable via a Dahlander switch, enabling the fan to operate flexibly and energy-efficiently. The aerodynamically shaped blades ensure a powerful airflow with increased efficiency. The AL 800 D84U 02 CFG is designed for continuous operation at air temperatures up to 60 °C, making it ideal for standard ventilation applications in various environments. It is supplied without a terminal box but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation solutions. With a strong focus on innovation, energy efficiency, and sustainability, all products comply with current ERP guidelines and deliver stable performance under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544322357 |
| Manufacturer's item number | AL 800 D84U 02 CFG |
| Article number | 65171040 |
Specifications
| Category code | 35 |
| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 44360 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
