Axial 800 mm Duct Fan – AL 800 D84U 01 CFG
The AL 800 D84U 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. By employing advanced numerical design techniques, the system efficiency has been optimized and the operating range expanded. Thanks to the adjustable blade angles, this fan is suitable for a variety of ventilation needs in commercial and industrial environments.
Optimized Design with 2-Stage Control
The fan features a robust and lightweight design, ensuring easy installation and reliable operation. Equipped with an IE3 motor that can be controlled in 2 stages via a Dahlander switching system, this fan allows for flexible and energy-efficient operation. The aerodynamically shaped blades provide a powerful airflow and increased efficiency. The AL 800 D84U 01 CFG is suitable for continuous operation at air temperatures up to 60 °C and delivers reliable performance for standard ventilation applications. It is supplied without a terminal box but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation solutions. With a strong focus on energy efficiency, sustainability, and innovation, all products comply with current ERP guidelines and deliver stable performance, even under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321251 |
| Manufacturer's item number | AL 800 D84U 01 CFG |
| Article number | 65170260 |
Specifications
| Category code | 35 |

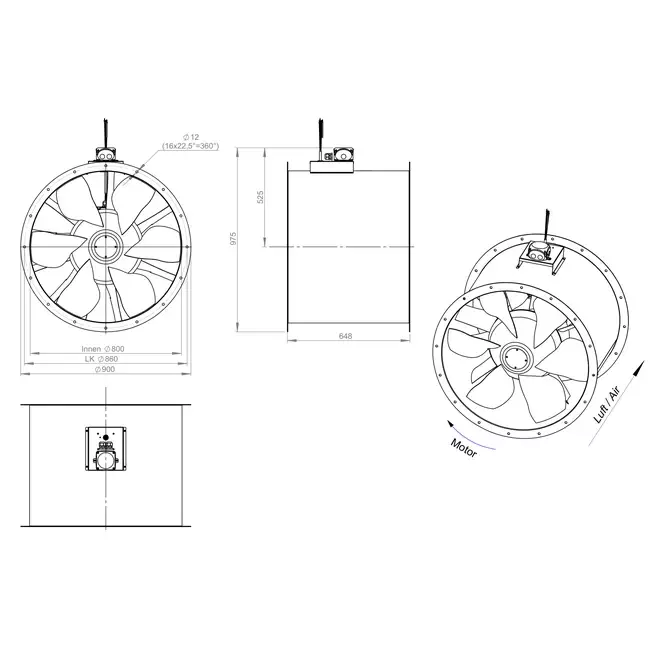

| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 38420 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
