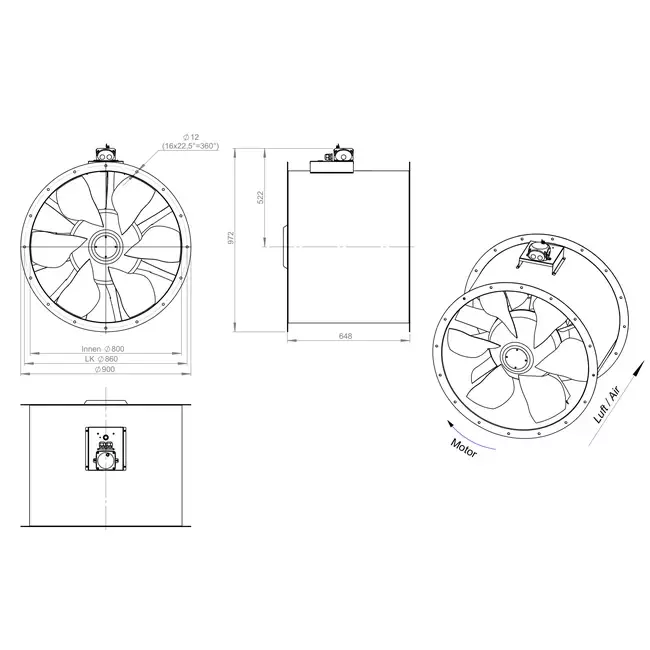

Axial 800 mm Duct Fan – AL 800 D6 03 CFG
The AL 800 D6 03 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Utilizing the latest numerical design techniques, system efficiency has been enhanced and the operating range significantly broadened. The adjustable blades make this fan versatile for use in both commercial and industrial ventilation systems.
Optimized Design for Reliable Air Displacement
This fan features a lightweight and robust design, ensuring easy installation and efficient handling. Equipped with an IEC standard motor suitable for frequency control, the AL 800 D6 03 CFG offers flexible and energy-efficient performance. The aerodynamically shaped blades generate a powerful airflow and ensure increased efficiency. This model is suitable for continuous operation at medium temperatures up to 60 °C and provides a sustainable solution for standard ventilation applications. It is supplied without a terminal box but includes a cable for easy connection to an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation systems. With years of experience, technological innovation, and a focus on energy efficiency, all products comply with current ERP guidelines and deliver stable performance under various conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321183 |
| Manufacturer's item number | AL 800 D6 03 CFG |
| Article number | 65170220 |
Specifications
| Category code | 35 |
| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 38110 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
