Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled
Axial 800 mm Duct Fan – AL 800 D6 01 CFG
The AL 800 D6 01 CFG from Ruck is an innovative and highly efficient axial fan, suitable for medium pressure applications. By utilizing the latest numerical design techniques, the system efficiency has been optimized and the operating range significantly expanded. Thanks to the adjustable blades, this fan is flexibly applicable within various HVAC and industrial systems.
Optimized Design for Sustainable Performance
With a lightweight and robust design, the AL 800 D6 01 CFG is easy to install and maintain. The fan is equipped with an IEC standard motor that is frequency controllable, ensuring flexible and energy-efficient operation. The aerodynamically optimized blades generate a powerful airflow with increased efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C, making it a reliable choice for various standard ventilation applications. It is supplied without a terminal box, but with a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation solutions. With a strong focus on energy efficiency, innovation, and reliability, all products comply with current ERP guidelines and provide stable performance under various operating conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321176 |
| Manufacturer's item number | AL 800 D6 01 CFG |
| Article number | 65170215 |
Specifications
| Category code | 35 |

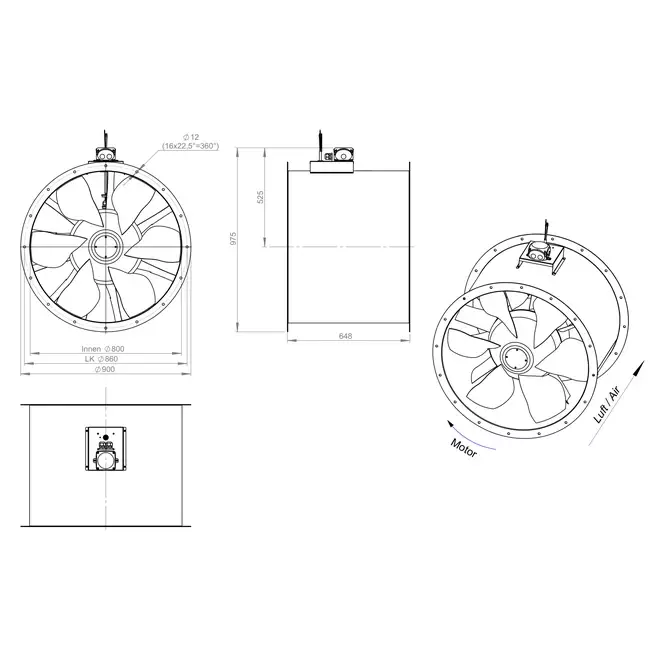

| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 27200 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
