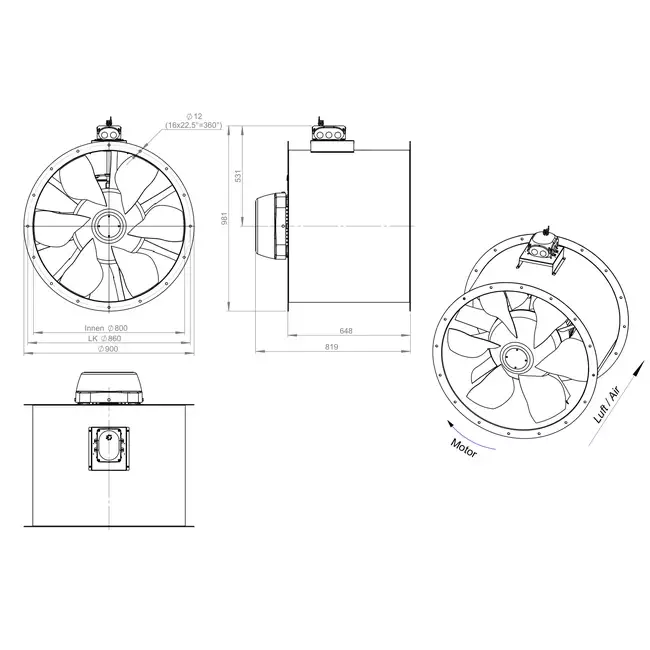

Axial 800 mm Duct Fan – AL 800 D4 06 CFG
The AL 800 D4 06 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the use of advanced numerical design techniques, system efficiency has been enhanced and the operating range expanded. The adjustable blades make this fan particularly suitable for a variety of applications in commercial buildings and industrial environments.
Optimized Design for Efficient Air Movement
This fan features a robust yet lightweight design, simplifying installation and maintenance. Equipped with an IEC standard motor suitable for frequency control, this model allows for flexible, energy-efficient operation. The aerodynamically shaped blades ensure a powerful airflow and high efficiency. The AL 800 D4 06 CFG is suitable for continuous operation at air temperatures up to 60 °C, making it a reliable choice for standard ventilation applications. It is supplied without a terminal box, with a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading manufacturer from Germany, specializing in high-quality ventilation solutions. With a strong focus on innovation, sustainability, and energy efficiency, all products comply with current ERP guidelines and deliver stable performance, even under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321169 |
| Manufacturer's item number | AL 800 D4 06 CFG |
| Article number | 65170206 |
Specifications
| Category code | 35 |
| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 56430 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
