Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

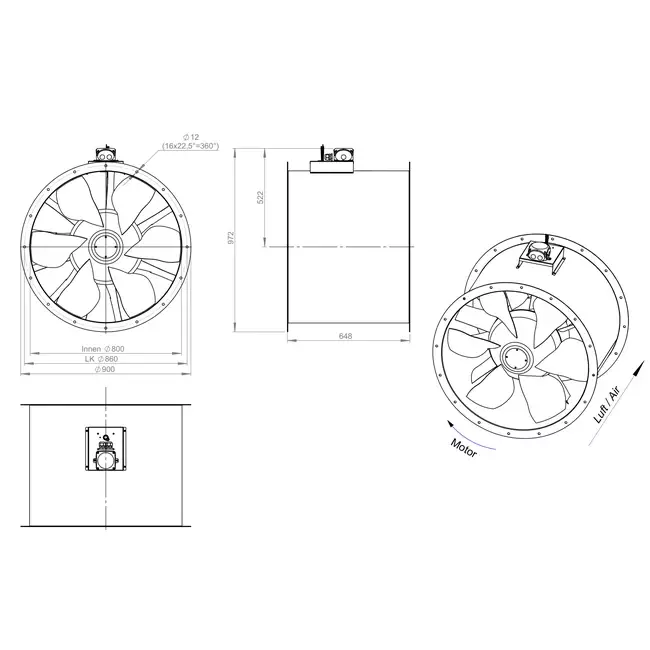

Axial 800 mm Duct Fan – AL 800 D4 04 CFG
The AL 800 D4 04 CFG from Ruck is an innovative and energy-efficient axial fan, designed for medium pressure applications. Thanks to the use of the latest numerical simulation techniques, system efficiency has been significantly improved and the operating range has been broadened. The adjustable blades make the fan versatile for various HVAC and industrial applications.
Optimized Design for Reliable Air Displacement
This fan features a lightweight and robust design for easy installation and hassle-free maintenance. The integrated IEC standard motor is suitable for frequency control, allowing for flexible and energy-saving operation. The aerodynamically shaped blades ensure a powerful airflow and increased efficiency. The AL 800 D4 04 CFG is suitable for continuous operation at medium temperatures up to 60 °C, making it ideal for standard ventilation applications in various environments. It is supplied without a terminal box, but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a renowned German manufacturer dedicated to high-quality ventilation solutions. With years of experience, innovative strength, and a strong focus on energy efficiency, all products comply with current ERP guidelines and deliver reliable performance under various conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321084 |
| Manufacturer's item number | AL 800 D4 04 CFG |
| Article number | 65170172 |
Specifications
| Category code | 35 |
| Length | 648 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 36800 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 800 mm |
