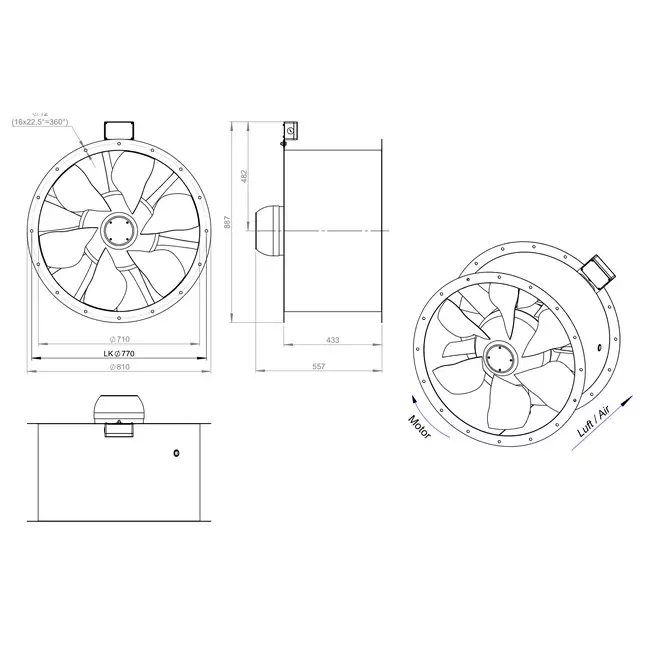

Axial 710 mm Duct Fan Flue Gas F400 – AL 710 D84U F4 02 CFG
The AL 710 D84U F4 02 CFG from Ruck is an innovative, energy-efficient axial fan specifically designed for medium pressure applications. By employing advanced numerical simulation techniques, the operating range has been expanded and system efficiency optimized. Thanks to the adjustable blades, the fan is widely applicable in both commercial and industrial environments.
Optimized Design for Flue Gas Exhaust and Daily Ventilation
This fan features a lightweight and robust design that simplifies installation and transport. Equipped with a powerful IE3 motor that is 2-stage adjustable via a Dahlander connection, this model offers flexibility and energy savings under varying operating conditions. The aerodynamically shaped blades enhance airflow and efficiency. The AL 710 D84U F4 02 CFG is certified for flue gas exhaust at temperatures up to 400 °C (F400) and suitable for continuous operation at temperatures up to 60 °C. This makes it an ideal fan for dual-use applications: standard ventilation as well as smoke and heat extraction. It is supplied without a terminal box, but includes a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation solutions. All products are developed with a focus on innovation, energy efficiency, and reliability, complying with current ERP guidelines. Ruck offers sustainable performance even under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321640 |
| Manufacturer's item number | AL 710 D84U F4 02 CFG |
| Article number | 65170521 |
Specifications
| Category code | 35 |
| Length | 433 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 26235 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 710 mm |
