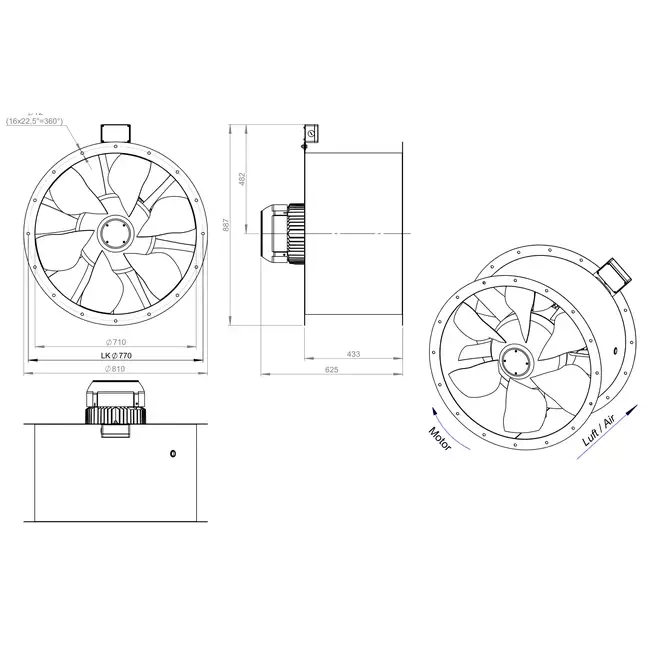

Axial 710 mm Duct Fan Flue Gas F400 – AL 710 D84U F4 01 CFG
The AL 710 D84U F4 01 CFG from Ruck is an innovative and highly efficient axial fan, suitable for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. The adjustable blades allow for versatile use in both commercial construction and industrial ventilation projects.
Optimized Design for Flue Gas Exhaust and Standard Ventilation
This fan is designed with a lightweight and robust housing, simplifying installation and handling. The IE3 motor features a 2-stage control via a Dahlander connection, allowing the fan to be efficiently tuned to the required air volume. The aerodynamically optimized blades contribute to increased airflow and higher efficiency. This model is certified for flue gas exhaust up to 400 °C (F400) and is suitable for continuous operation at air temperatures up to 60 °C – perfect for dual-use applications in smoke and heat exhaust as well as daily ventilation. Delivered without a terminal box, but with a cable for easy connection to an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality ventilation solutions. With a focus on energy efficiency, innovation, and reliability, all products comply with current ERP guidelines. Ruck guarantees stable performance in the most demanding applications.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321657 |
| Manufacturer's item number | AL 710 D84U F4 01 CFG |
| Article number | 65170524 |
Specifications
| Category code | 35 |
| Length | 433 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 36690 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 710 mm |
