Good points

Brand: Ruck
AC motor
Rookgas F400
Frequency controlled

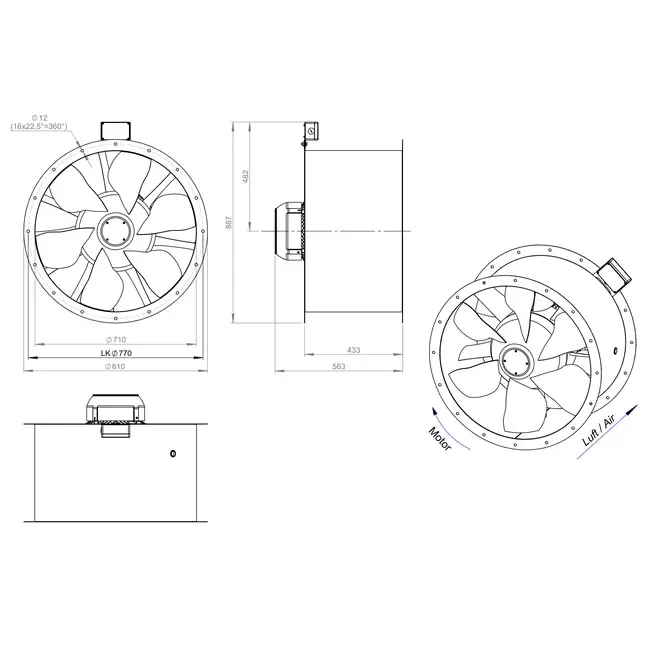

Axial 710 mm Duct Fan Flue Gas F400 – AL 710 D4 F4 03 CFG

The AL 710 D4 F4 03 CFG from Ruck is an innovative axial fan with high efficiency, designed for medium pressure applications. Thanks to advanced numerical design techniques, system efficiency has been improved and the operating range has been expanded. With adjustable blades, this fan is widely applicable in both commercial and industrial ventilation systems.

Optimized Design for Flue Gas Exhaust and Daily Ventilation

This fan features a lightweight, robust design that simplifies installation and handling. Equipped with an IEC standard motor that can be frequency controlled, the AL 710 D4 F4 03 CFG can be flexibly operated for energy-efficient performance. The aerodynamically optimized blades contribute to high airflow and increased efficiency. This model is certified for flue gas exhaust up to 400 °C (F400) and suitable for continuous operation up to 60 °C. Perfect for dual-use applications in flue and heat exhaust systems as well as standard ventilation. Delivered without a terminal box, but including a cable for easy connection of an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading manufacturer of high-quality ventilation solutions. With a focus on innovation, reliability, and energy efficiency, all products comply with current ERP guidelines. Ruck fans deliver stable performance, even under demanding conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321626
Manufacturer's item number	AL 710 D4 F4 03 CFG
Article number	65170515

Specifications

Category code	35
Length	433 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	33245 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	710 mm
