Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

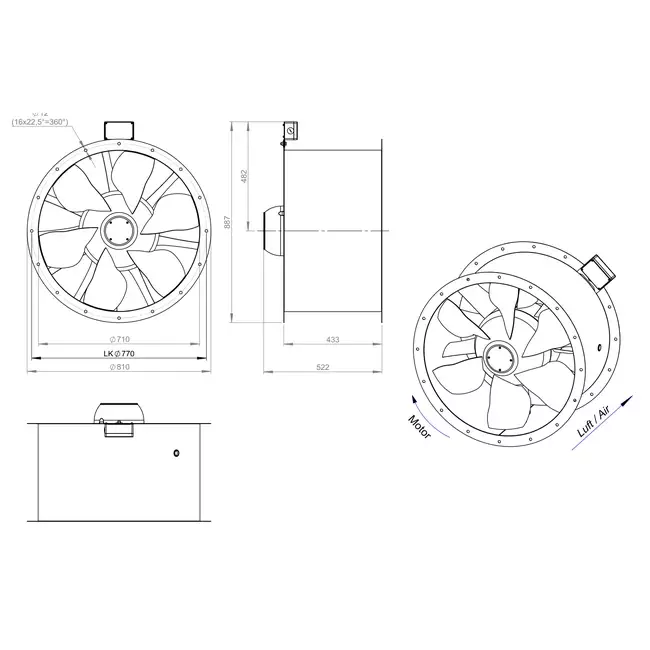

Axial 710 mm Duct Fan Flue Gas F400 – AL 710 D4 F4 02 CFG
The AL 710 D4 F4 02 CFG from Ruck is an innovative, high-efficiency axial fan, suitable for medium pressure applications. By utilizing the latest numerical design techniques, both the efficiency has been increased and the operating range has been broadened. Thanks to the adjustable blades, this fan is flexibly applicable in various HVAC and industrial installations.
Optimized Design for Demanding Ventilation Applications
The lightweight and robust design of this fan significantly simplifies installation and handling. The built-in IEC standard motor is frequency controllable, allowing the fan to be operated efficiently and tailored to specific needs. The aerodynamically optimized blades ensure a powerful airflow with increased efficiency. The AL 710 D4 F4 02 CFG is certified for flue gas discharge in case of fire (F400) and is suitable for continuous operation at temperatures up to 60 °C. Ideal for combined applications in regular ventilation and smoke and heat extraction (dual-use). Delivered without a terminal box, but including a cable for connecting an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of high-quality fans. Through continuous innovation, a focus on energy efficiency, and compliance with current ERP guidelines, Ruck products guarantee reliable performance under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321619 |
| Manufacturer's item number | AL 710 D4 F4 02 CFG |
| Article number | 65170512 |
Specifications
| Category code | 35 |
| Length | 433 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 29750 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 710 mm |
