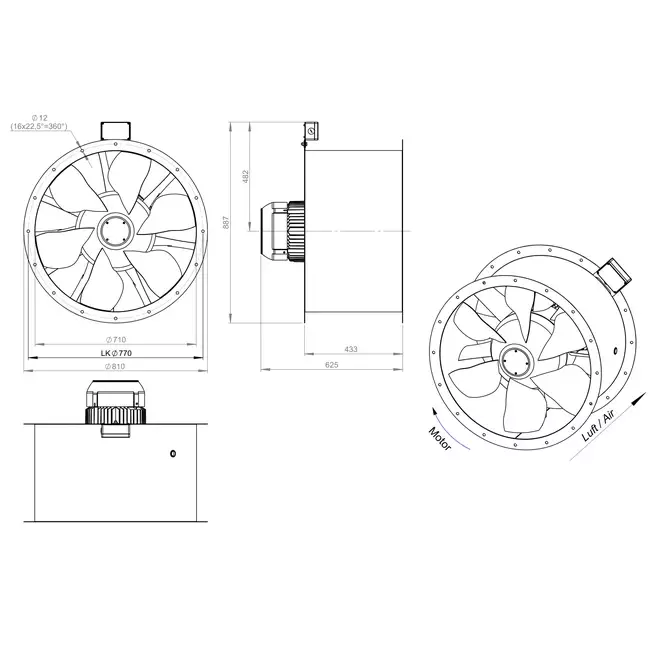

Axial 710 mm Duct Fan Flue Gas F300 – AL 710 D84U F3 01 CFG
The AL 710 D84U F3 01 CFG from Ruck is an innovative and highly efficient axial fan, specifically developed for flue gas extraction and daily ventilation. Thanks to the application of advanced numerical methods, the design has been optimized for maximum system efficiency. With adjustable blade angles, this fan offers a wide operating range, making it versatile for various applications. The model is F300 certified and suitable for continuous use up to 60 °C. This makes it an excellent dual-use fan: for both regular air exchange and flue gas heat extraction during a fire.
Robust Design with Optimized Weight
The AL 710 D84U F3 01 CFG is designed with a strong yet lightweight construction, simplifying installation and making maintenance efficient. The optimized design has reduced the weight without compromising performance or reliability. The fan is equipped with an energy-efficient IE3 motor with two-speed control via a Dahlander switching, ensuring flexible and energy-efficient operation. The aerodynamically shaped rotor and stator blades contribute to high efficiency in medium pressure applications. This makes this model highly suitable for medium-sized industrial and commercial systems.
Quality Guaranteed
Ruck Ventilatoren GmbH is a German manufacturer with years of expertise in high-quality ventilation solutions. With over 300 employees, the company develops innovative products that meet the strictest requirements for energy efficiency and fire safety. The AL 710 D84U F3 01 CFG also complies with current ERP guidelines and is designed for reliable performance in demanding situations.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322524 |
| Manufacturer's item number | AL 710 D84U F3 01 CFG |
| Article number | 65171167 |
Specifications
| Category code | 35 |
| Length | 433 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 36690 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 710 mm |
