Good points

Brand: Ruck
AC motor
Rookgas F300
Frequency controlled

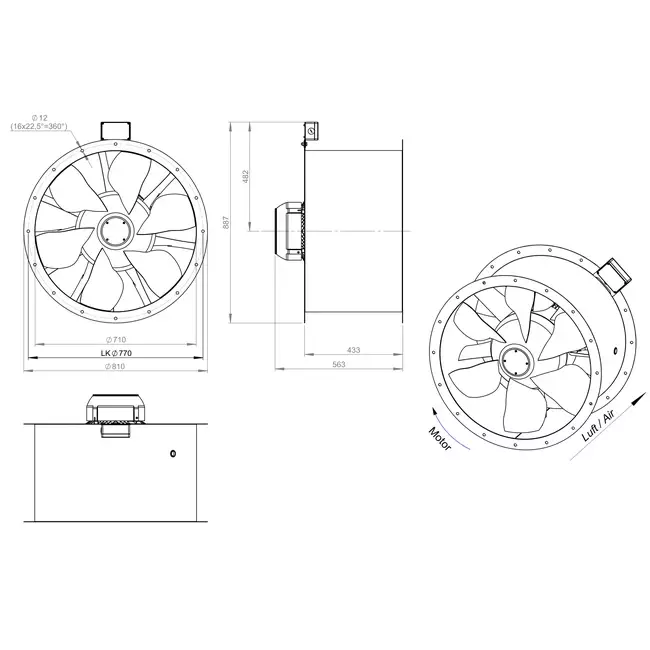

Axial 710 mm Duct Fan Flue Gas F300 – AL 710 D4 F3 03 CFG

The AL 710 D4 F3 03 CFG from Ruck is an innovative and energy-efficient axial fan designed for medium pressure applications. Thanks to the use of the latest numerical design methods, system efficiency has been optimized and the operating range significantly increased. With adjustable blades, the fan is suitable for a variety of applications in both commercial buildings and industrial ventilation systems.

Optimized Design for Flexible Flue Gas Exhaust

This fan features a lightweight, ergonomic design that simplifies installation and handling. The IEC standard motor is suitable for frequency control, allowing the speed to be easily adjusted to the desired air volume. The aerodynamically optimized blades ensure higher airflow with improved efficiency. The fan is certified for flue gas exhaust according to F300 and is suitable for continuous operation up to 60 °C, making it perfect for both daily ventilation and smoke and heat extraction in case of fire (dual-use). It is supplied without a terminal box but includes a cable for easy connection to an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer of ventilation solutions. With a strong focus on innovation, reliability, and energy efficiency, all products comply with the applicable ERP guidelines. Ruck fans deliver stable performance even under the most demanding conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321671
Manufacturer's item number	AL 710 D4 F3 03 CFG
Article number	65170536

Specifications

Category code	35
Length	433 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	33245 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	710 mm
