Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

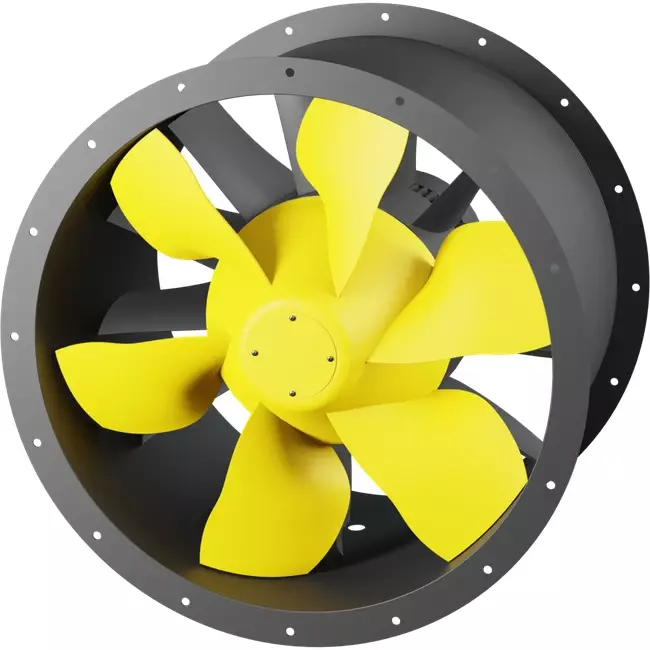

Axial 710 mm Duct Fan – AL 710 D84U 02 CFG
The AL 710 D84U 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the application of the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. The adjustable blades make this fan suitable for various applications in both commercial and industrial sectors.
Optimized Design for Flexible Performance
This fan features a lightweight, robust design that facilitates installation and handling. It is equipped with an IE3 motor that is 2-stage adjustable via a Dahlander switch, allowing you to tune the fan for energy-efficient and flexible operation. The aerodynamically optimized blades ensure higher airflow and increased efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and is ideal for both standard ventilation and smoke and heat extraction in case of fire (dual-use). Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of axial fans. With years of experience and a focus on energy efficiency and reliable performance, all products comply with the latest ERP (Energy Related Product) guidelines and provide sustainable performance in the most demanding applications.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321022 |
| Manufacturer's item number | AL 710 D84U 02 CFG |
| Article number | 65170138 |
Specifications
| Category code | 35 |
| Length | 433 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 26235 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 710 mm |
