Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

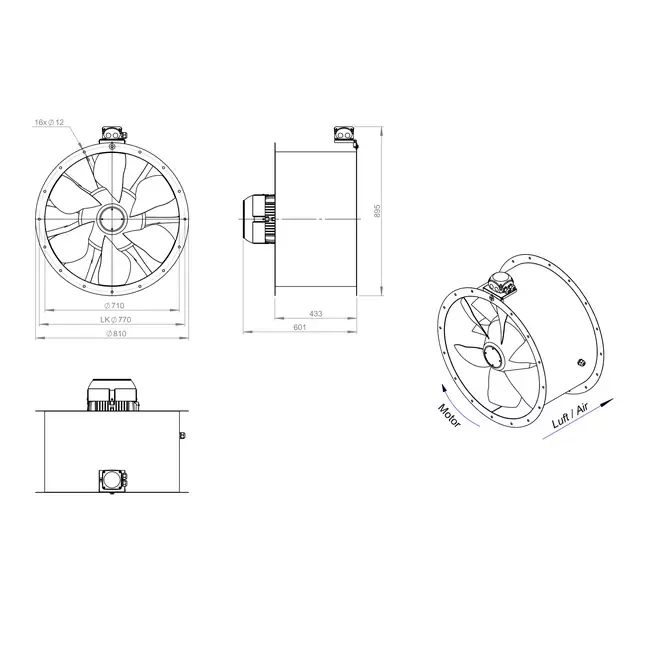

Axial 710 mm Duct Fan – AL 710 D84U 01 CFG
The AL 710 D84U 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium-pressure applications. Thanks to the latest numerical design techniques, the system efficiency has been optimized and the operating range expanded. The adjustable blades make this fan suitable for a wide range of applications, from utility ventilation to industrial systems where high performance is required.
Optimized Design for Flexible Performance
This fan features a lightweight, robust design that facilitates installation and handling. It is equipped with an IE3 motor that is 2-stage adjustable via a Dahlander switching, ensuring energy-efficient and flexible operation. The aerodynamically optimized blades provide higher airflow and improved efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and offers reliable performance in various ventilation systems. Delivered without a terminal box, but with a cable for easy connection to an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of axial fans. With years of experience and a focus on innovation and energy efficiency, all products comply with the latest ERP (Energy Related Product) guidelines and are designed for long-lasting performance in the most demanding applications.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321039 |
| Manufacturer's item number | AL 710 D84U 01 CFG |
| Article number | 65170142 |
Specifications
| Category code | 35 |
| Length | 433 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 36690 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 710 mm |
