Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

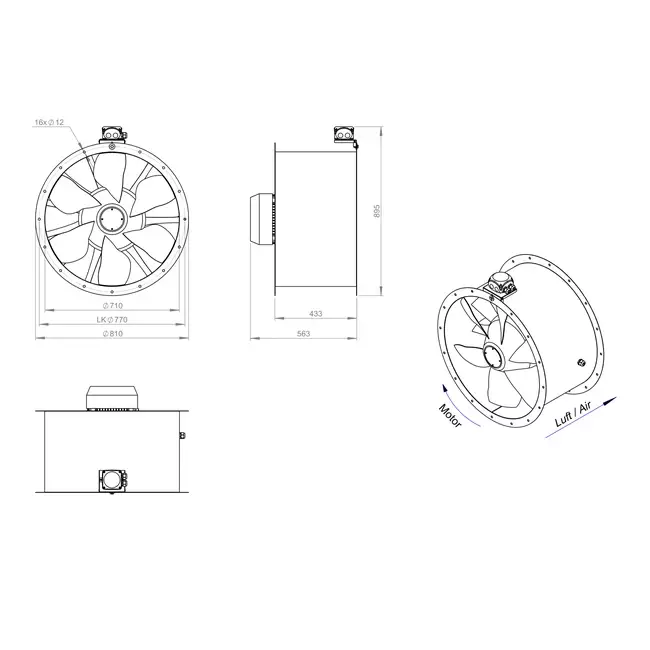

Axial 710 mm Duct Fan – AL 710 D4 03 CFG

The AL 710 D4 03 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. By utilizing advanced numerical design techniques, the system efficiency has been optimized and the operating range expanded. The adjustable blades ensure that this fan is versatile, suitable for everything from standard ventilation to industrial applications requiring high air volumes.

Optimized Design for Versatility

This fan features a robust yet lightweight construction that facilitates installation and handling. Equipped with an IEC standard motor suitable for frequency control, you can easily adjust the fan to meet the required performance. The aerodynamically optimized blades contribute to higher airflow and improve efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for easy connection to an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in axial fans. All products are developed in accordance with current ERP (Energy Related Product) guidelines and meet the highest standards for energy efficiency and sustainability.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544321015
Manufacturer's item number	AL 710 D4 03 CFG
Article number	65170135

Specifications

Category code	35
Length	433 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	33245 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	710 mm
