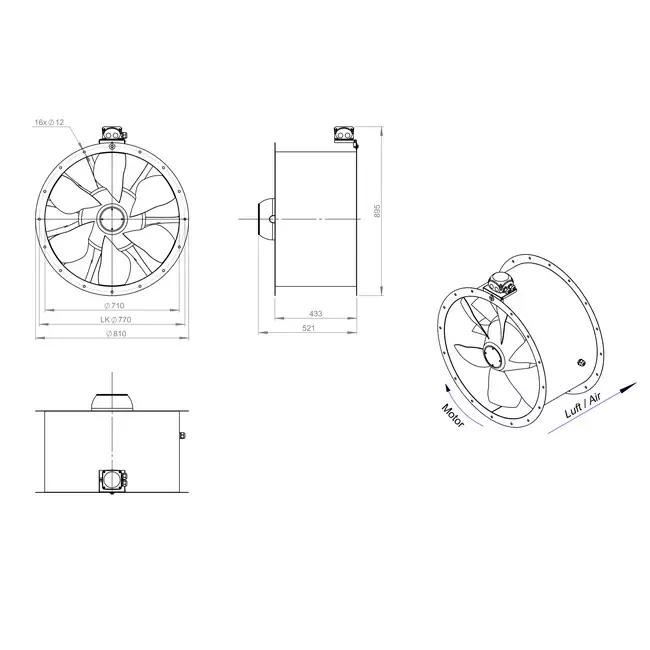

Axial 710 mm Duct Fan – AL 710 D4 02 CFG
The AL 710 D4 02 CFG from Ruck is an innovative and highly efficient axial fan, designed for medium pressure applications. Thanks to the application of the latest numerical design techniques, the system efficiency has been optimized and the operating range has been expanded. The adjustable blades make this fan suitable for various applications, from commercial to industrial ventilation systems.
Optimized Design for Versatility
This fan features a robust yet lightweight design, facilitating installation and handling. Equipped with an IEC standard motor suitable for frequency control, the fan can be efficiently adjusted to meet your specific requirements. The aerodynamically optimized blades contribute to increased airflow and improved efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and can be used in various ventilation systems. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer known worldwide for its reliable and energy-efficient products. All products comply with current ERP (Energy Related Product) guidelines and provide sustainable performance in the most demanding applications.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320971 |
| Manufacturer's item number | AL 710 D4 02 CFG |
| Article number | 65170116 |
Specifications
| Category code | 35 |
| Length | 433 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 29750 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 710 mm |
