Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

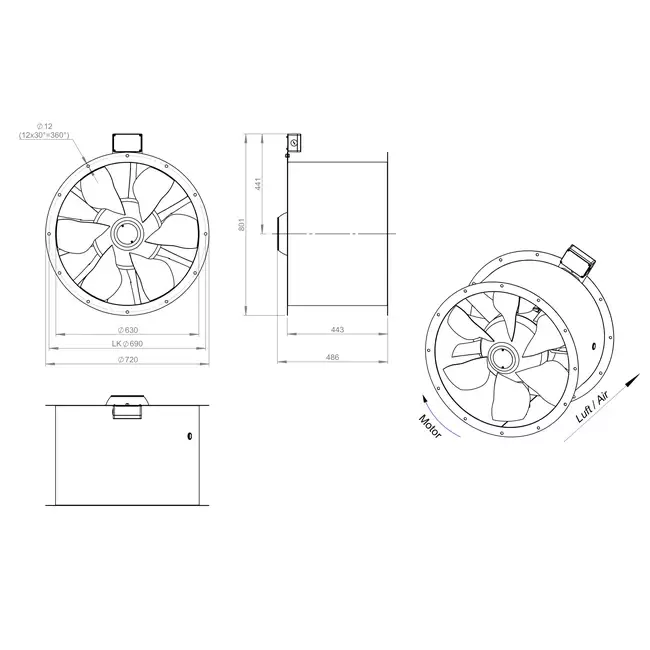

Axial 630 mm Duct Fan Flue Gas F400 – AL 630 D84U F4 02 CFG
The AL 630 D84U F4 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, developed for flue gas extraction in accordance with the F400 standard. Thanks to the latest numerical design techniques, the system efficiency has been significantly increased and the operating range has been expanded. The adjustable blades make this fan suitable for both regular ventilation and smoke and heat extraction in case of fire (dual-use).
Optimized Design for Flexible Use
This fan features an optimized, lightweight design that facilitates installation and handling. It is equipped with an IE3 motor that can be adjusted in two stages via a Dahlander connection, allowing you to tune the fan for energy-efficient and flexible performance. The aerodynamically optimized blades ensure higher airflow and improved efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Performance from Ruck
Ruck Ventilatoren GmbH is a renowned German manufacturer known for its reliable and energy-efficient products. All products are developed according to the latest ERP (Energy Related Product) guidelines and offer long-lasting performance, even in the most demanding applications.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321527 |
| Manufacturer's item number | AL 630 D84U F4 02 CFG |
| Article number | 65170463 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 18055 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 630 mm |
