Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

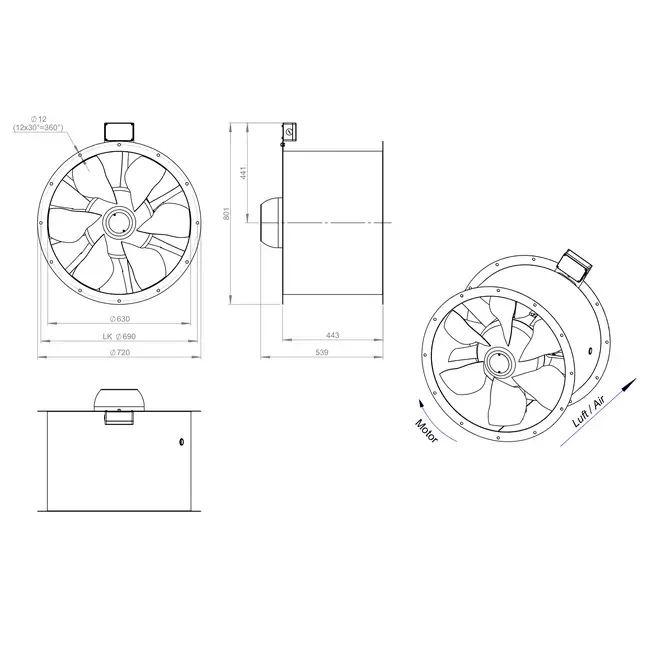

Axial 630 mm Duct Fan Flue Gas F400 – AL 630 D84U F4 01 CFG
The AL 630 D84U F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications and flue gas extraction in accordance with the F400 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been enhanced and the operating range has been expanded. The adjustable blade angles make this fan ideal for both regular ventilation and smoke and heat extraction during a fire (dual-use).
Optimized Design for Flexible Performance
This fan features a lightweight, optimized design that facilitates installation and handling. Equipped with an IE3 motor that can be adjusted in two stages via a Dahlander switch, you can tune the fan energy-efficiently and flexibly to your specific needs. The aerodynamically optimized blades ensure efficient airflow and improved performance. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a renowned German manufacturer known worldwide for its reliable and energy-efficient products. All fans comply with the latest ERP (Energy Related Product) guidelines and deliver excellent performance, even under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321534 |
| Manufacturer's item number | AL 630 D84U F4 01 CFG |
| Article number | 65170466 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 25630 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 630 mm |
